Frameless glass walls are large glass panels that slide on parallel tracks with no vertical frames between them. Direct WinDoors offers a frameless sliding glass wall system that is custom-made to your opening — patios, pools, restaurants, offices, sunrooms, and storefronts. Closed, the wall looks almost invisible. Open, the panels stack to one side or split to both.
Free quote: (818) 570-2424 · info@directwindoors.com
Where Frameless Glass Walls Work

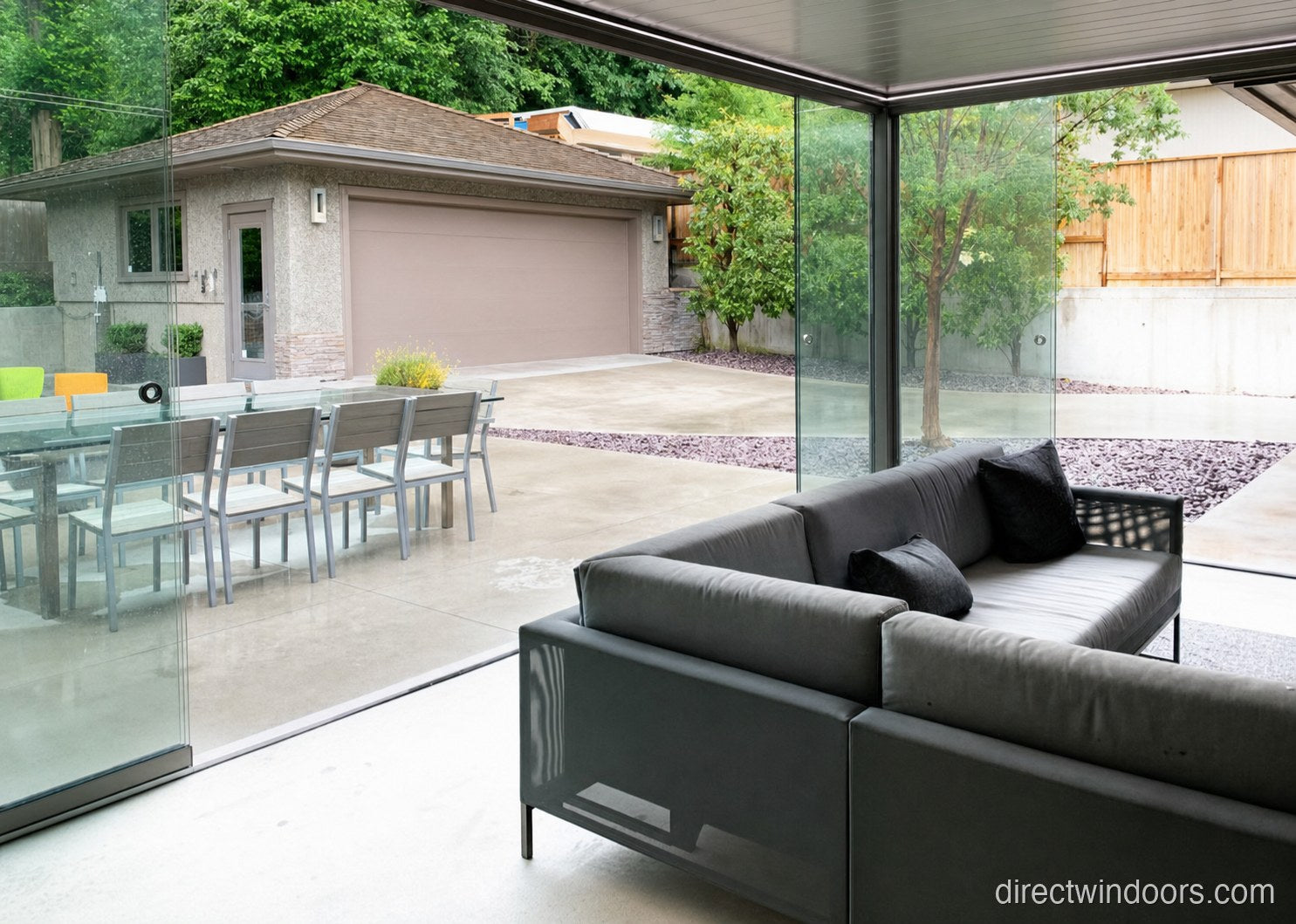

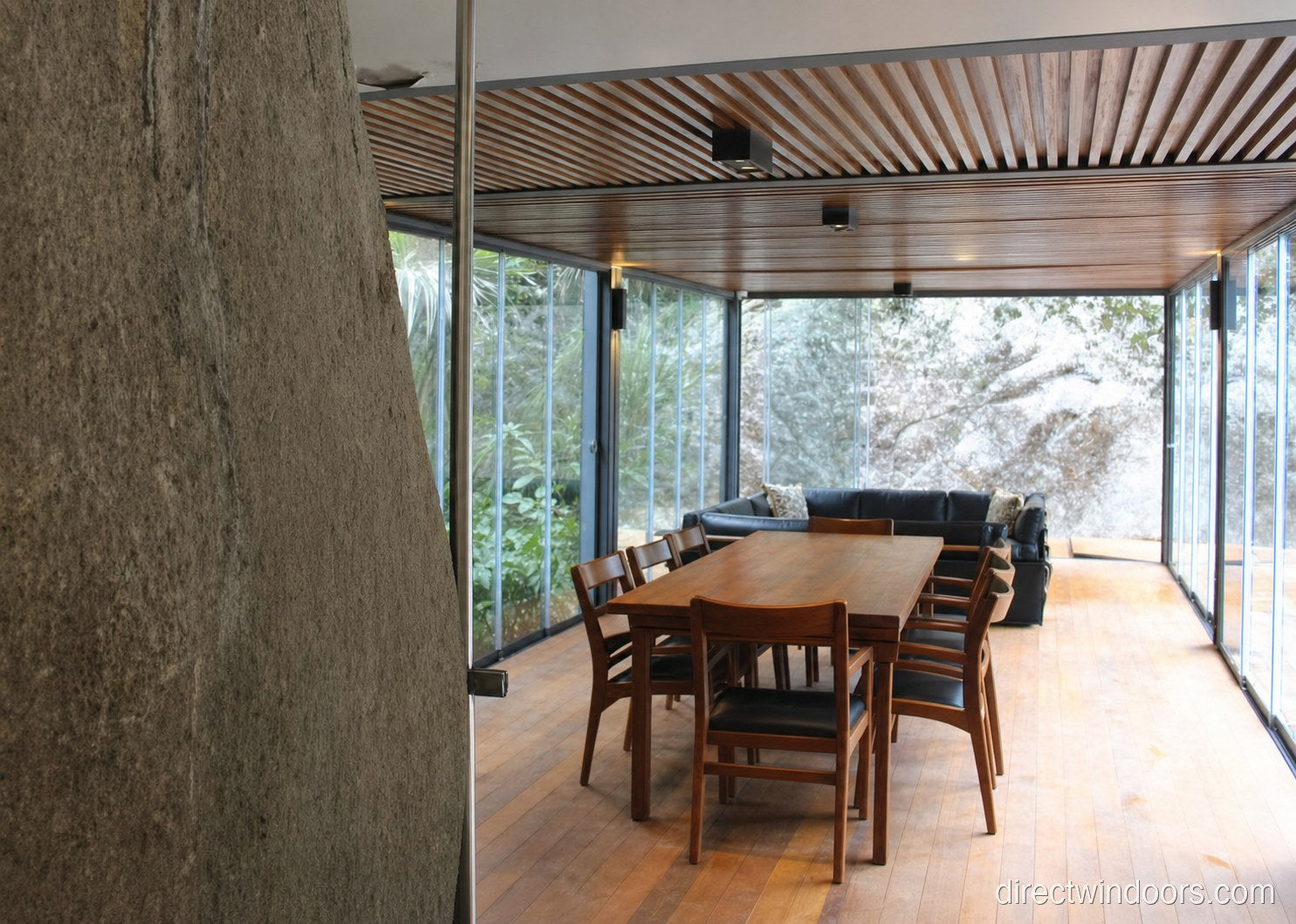

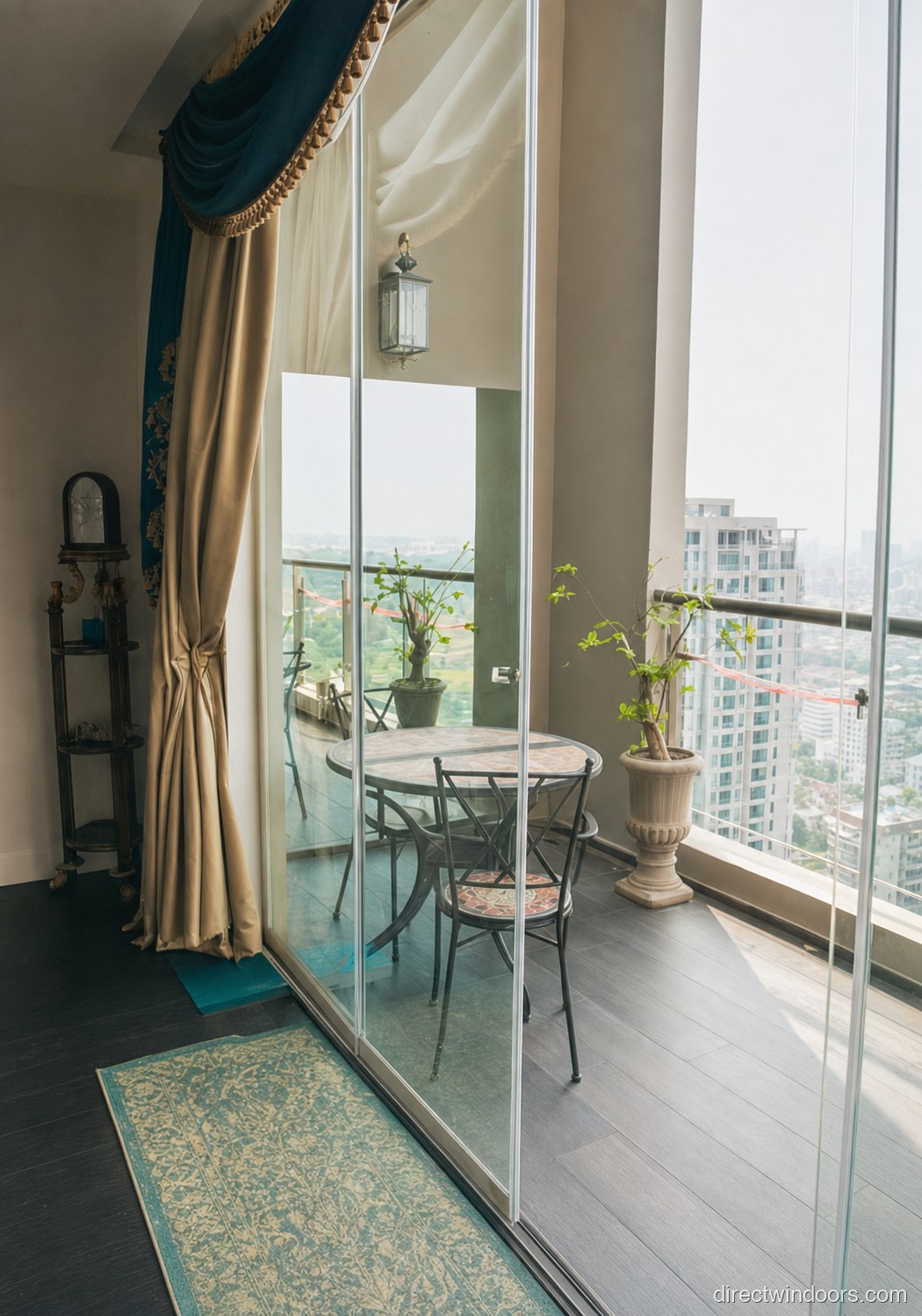

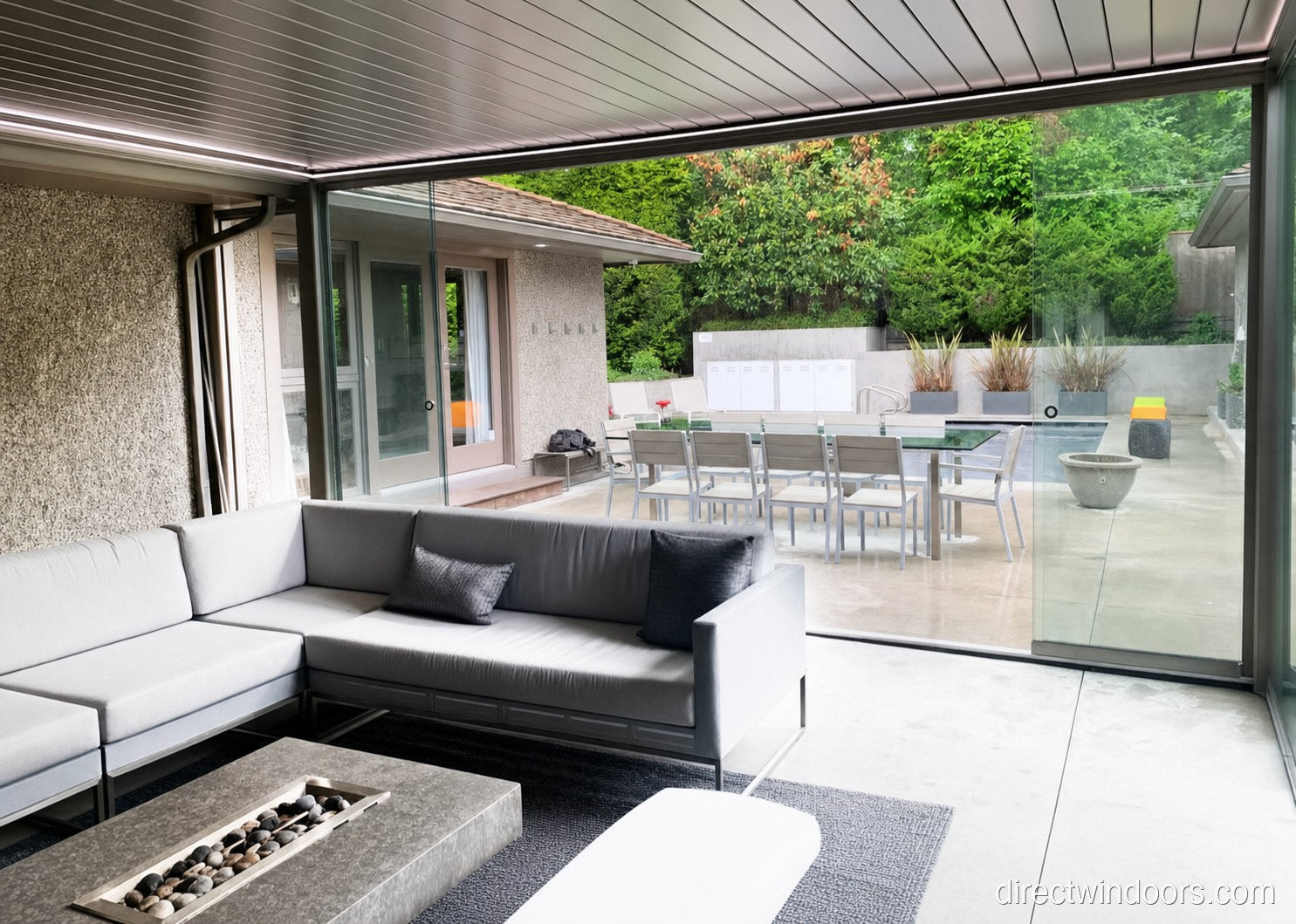

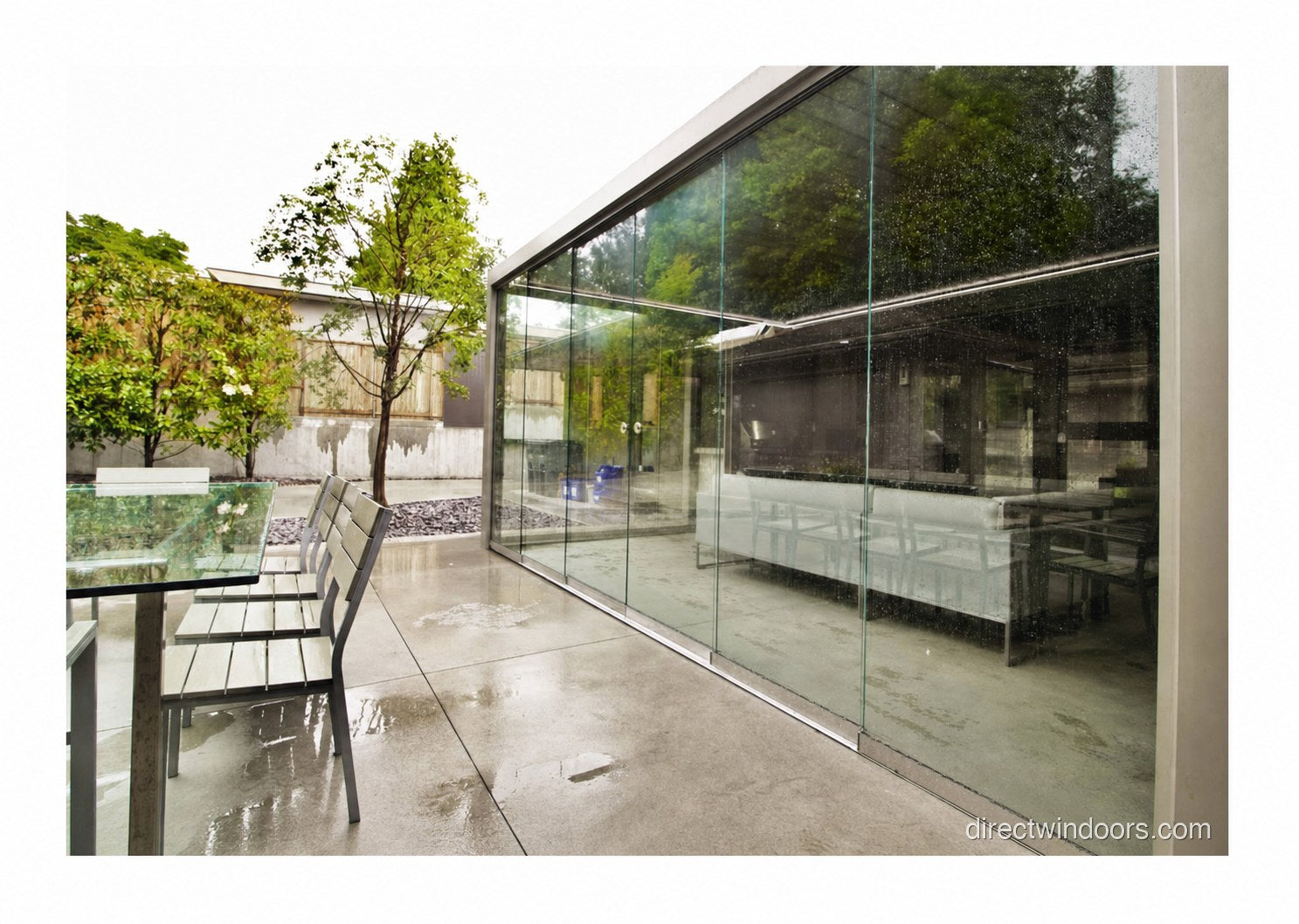

- Patios, terraces, balconies — open the wall fully when the weather's right; close it tight when it isn't.

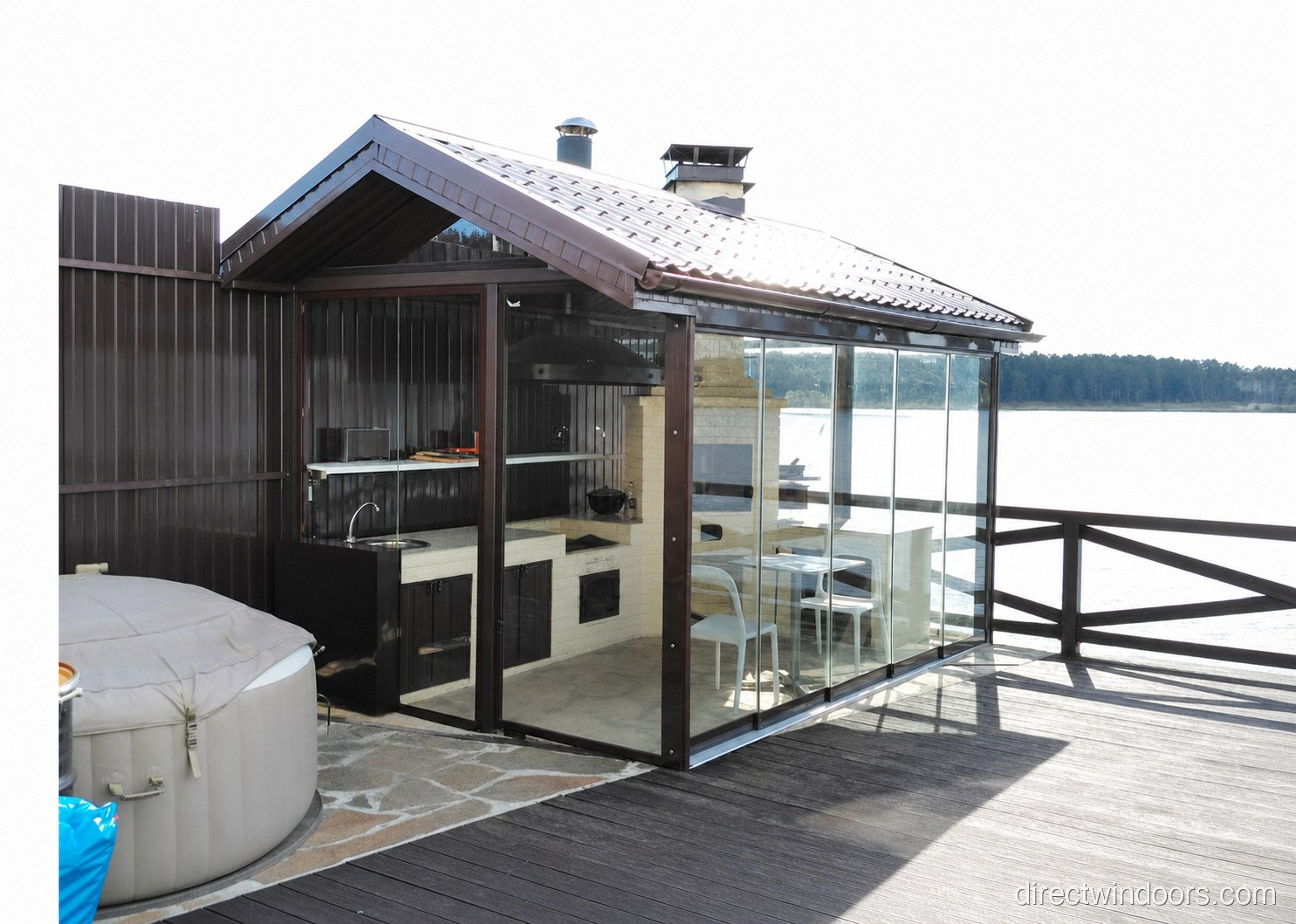

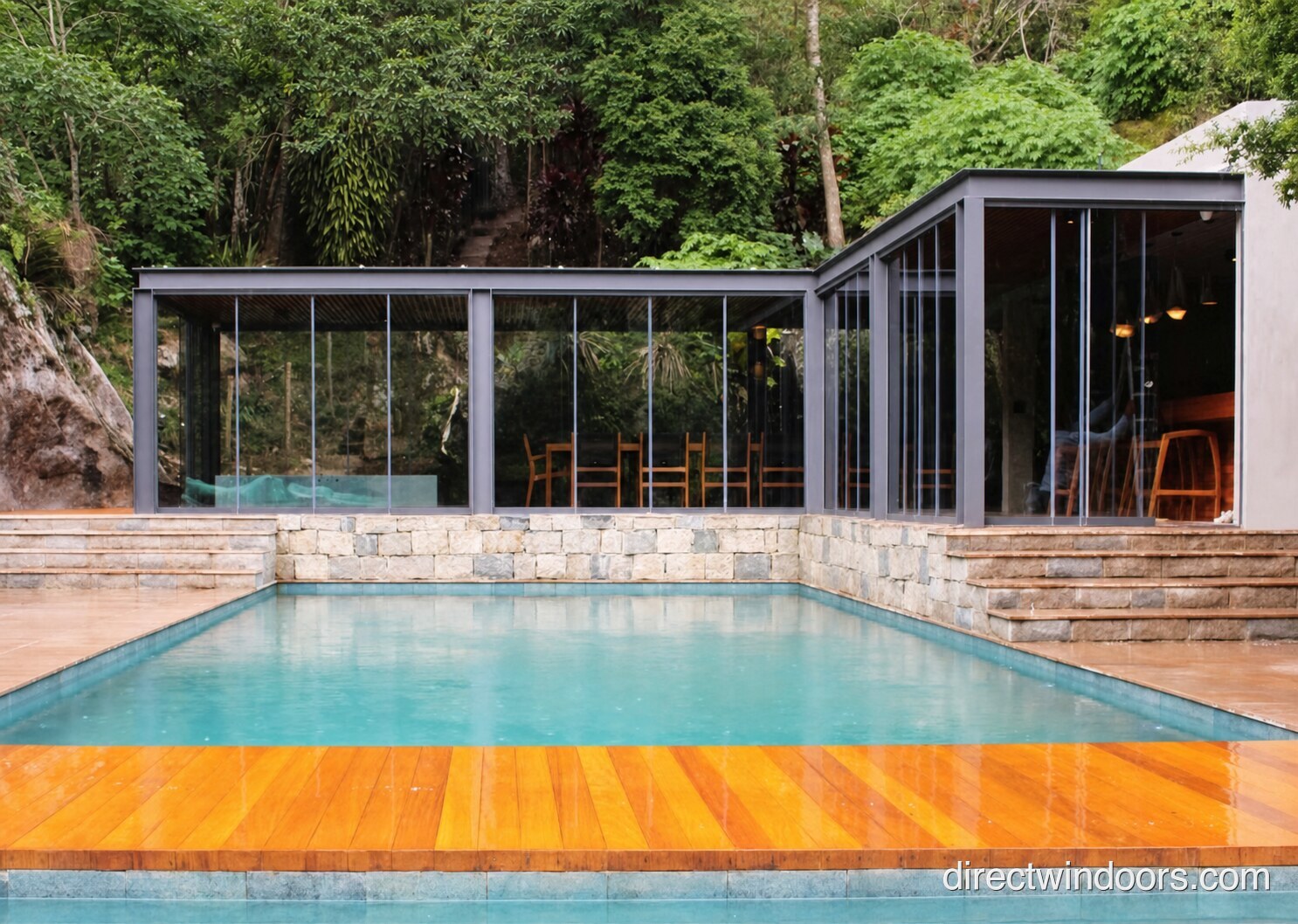

- Pool enclosures and garden rooms — full view in, weatherproof closed.

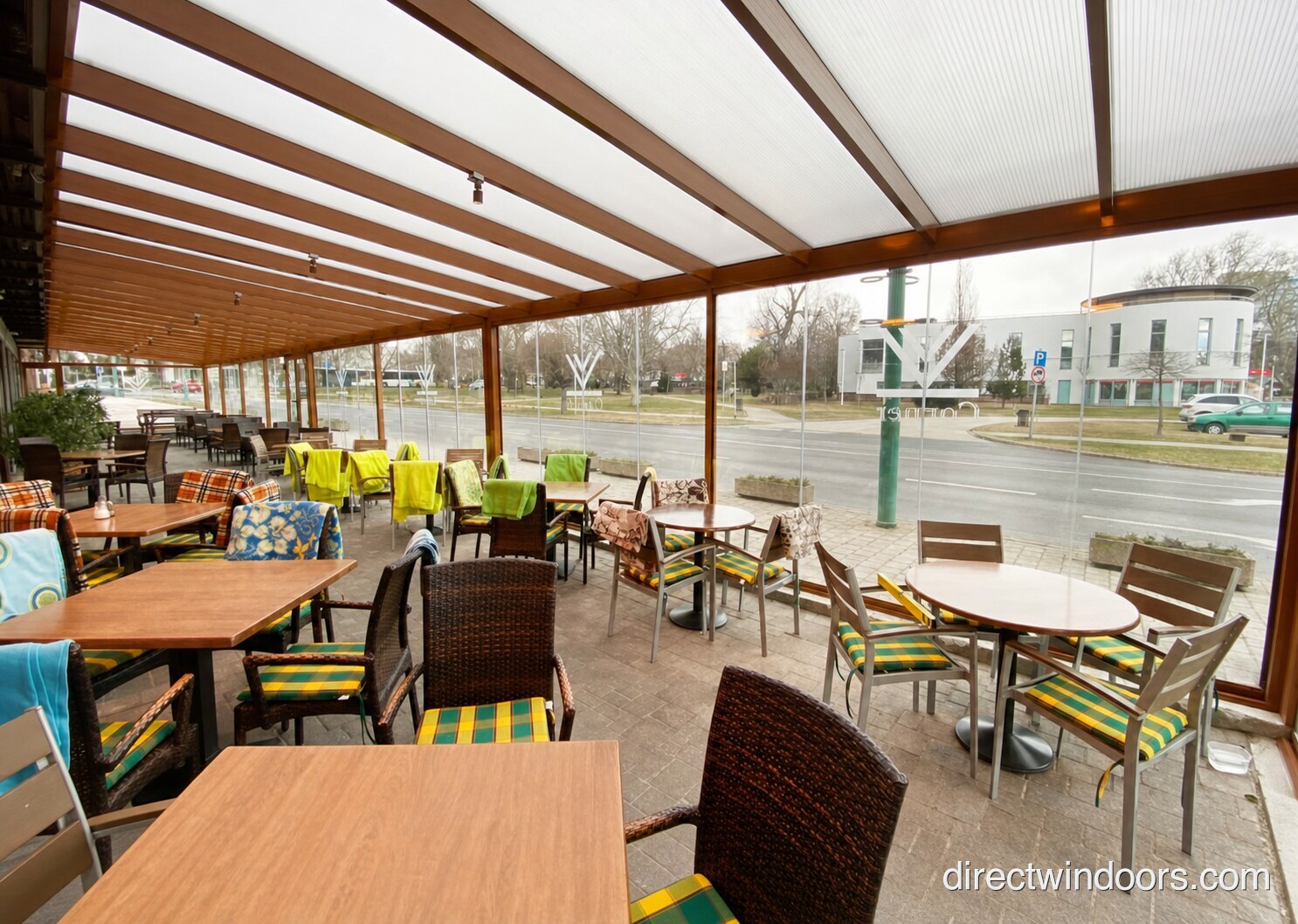

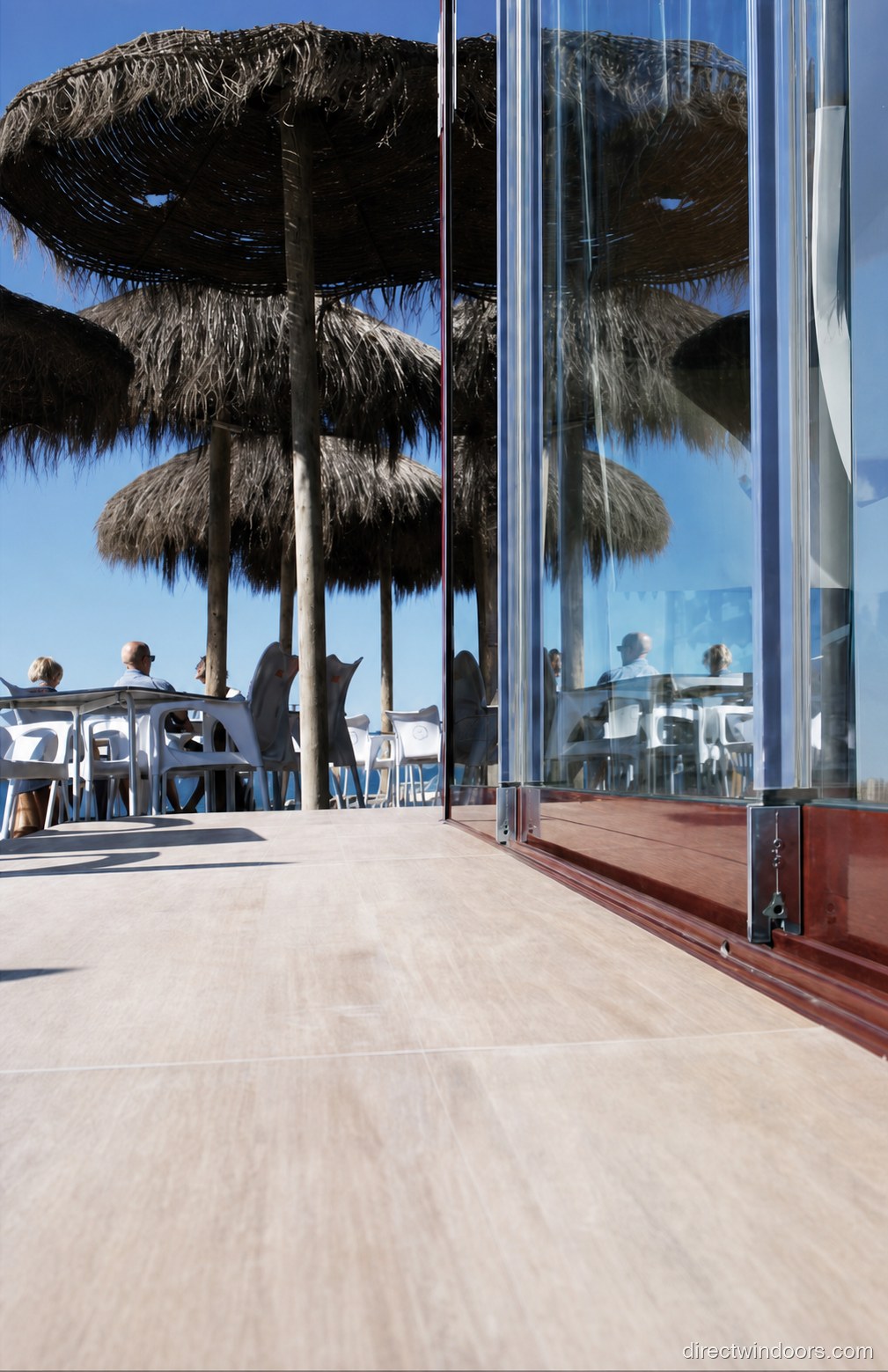

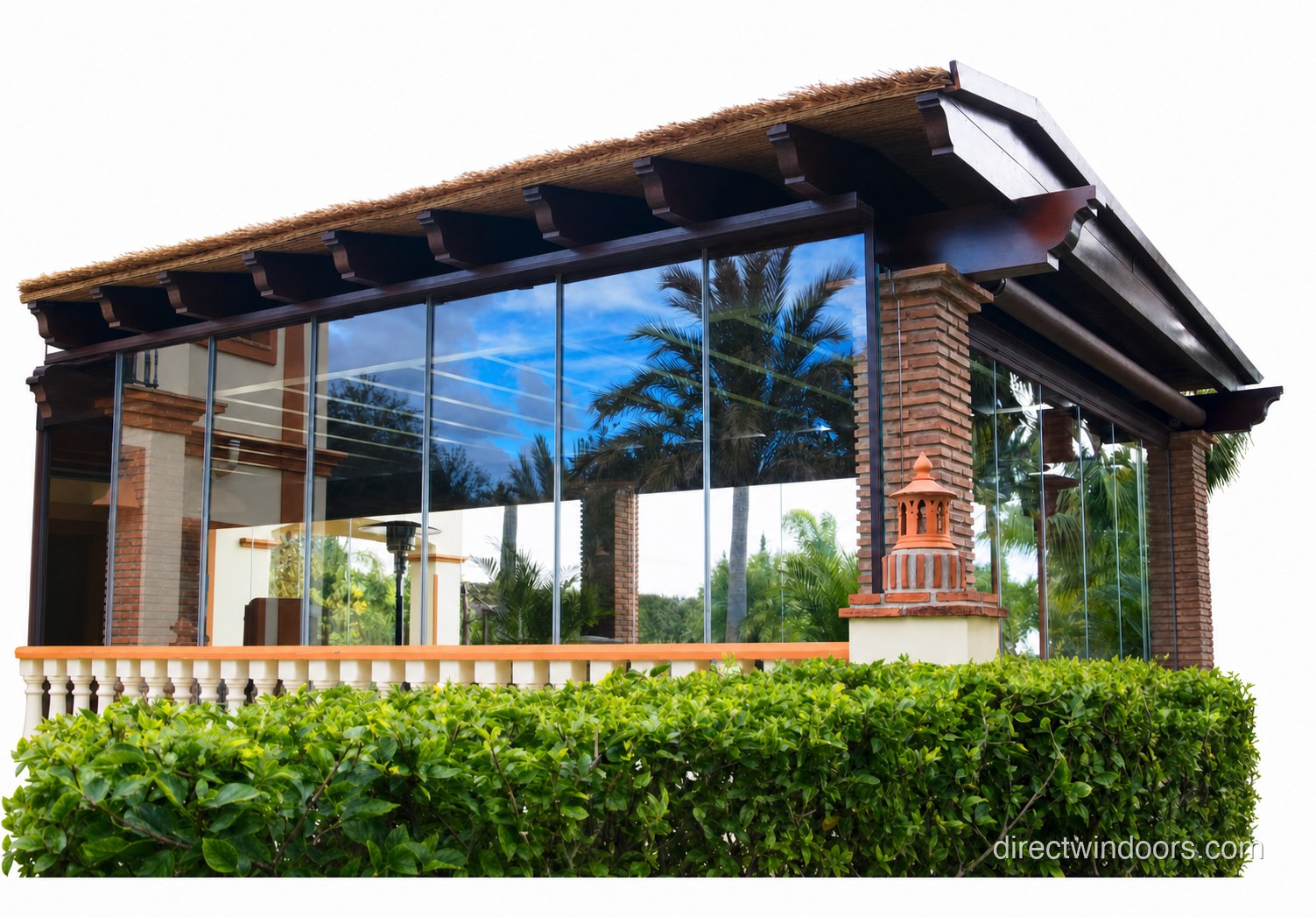

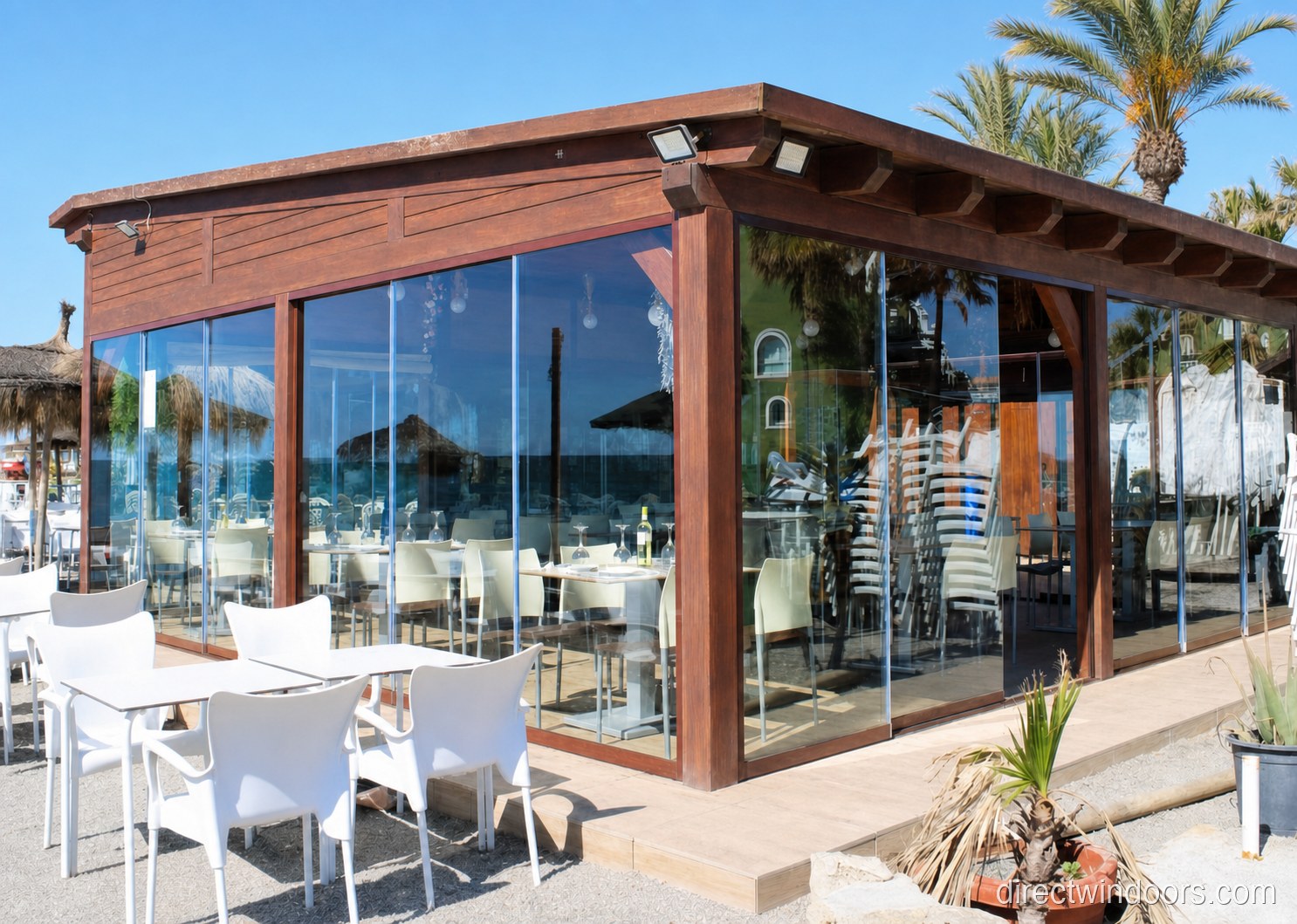

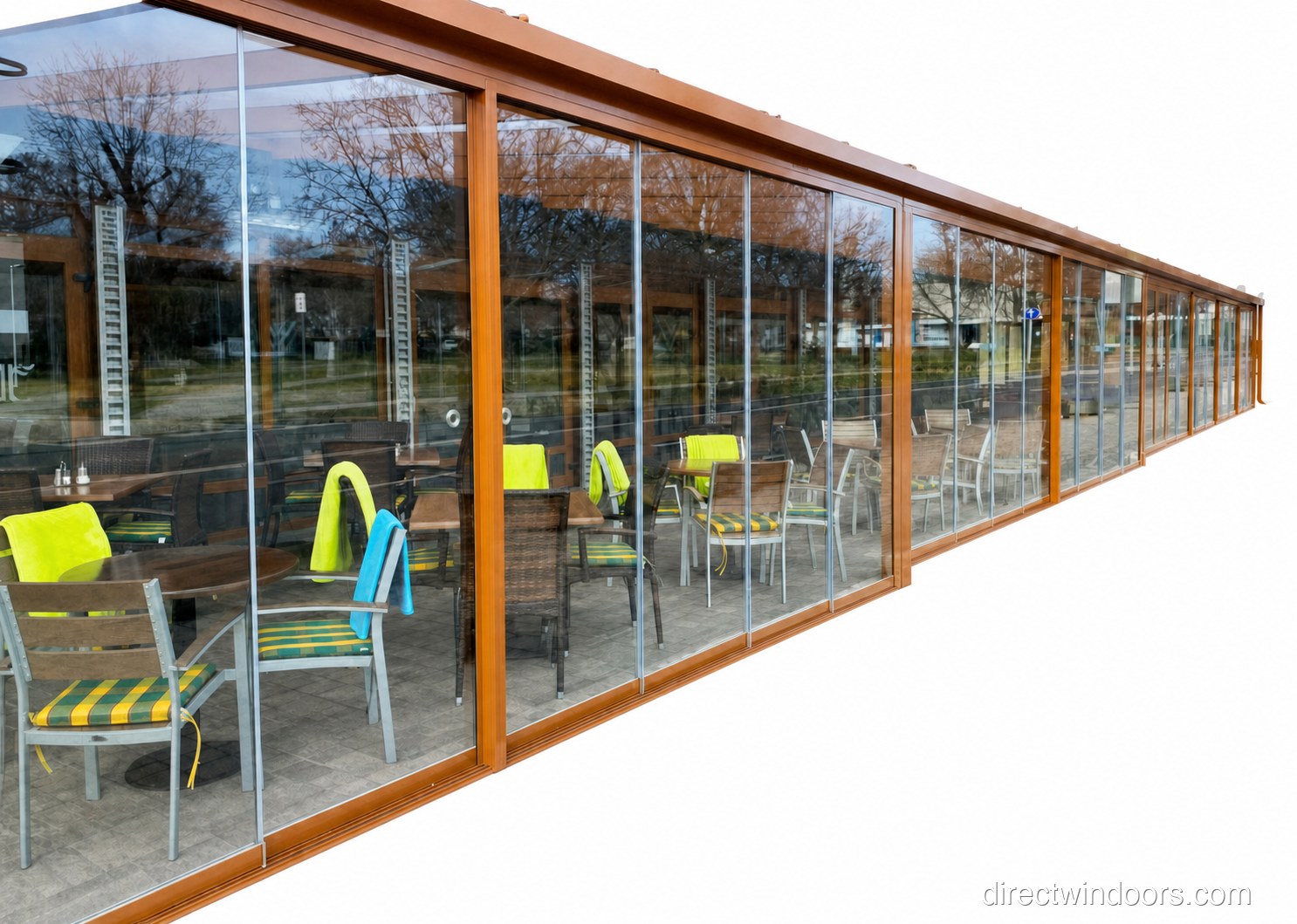

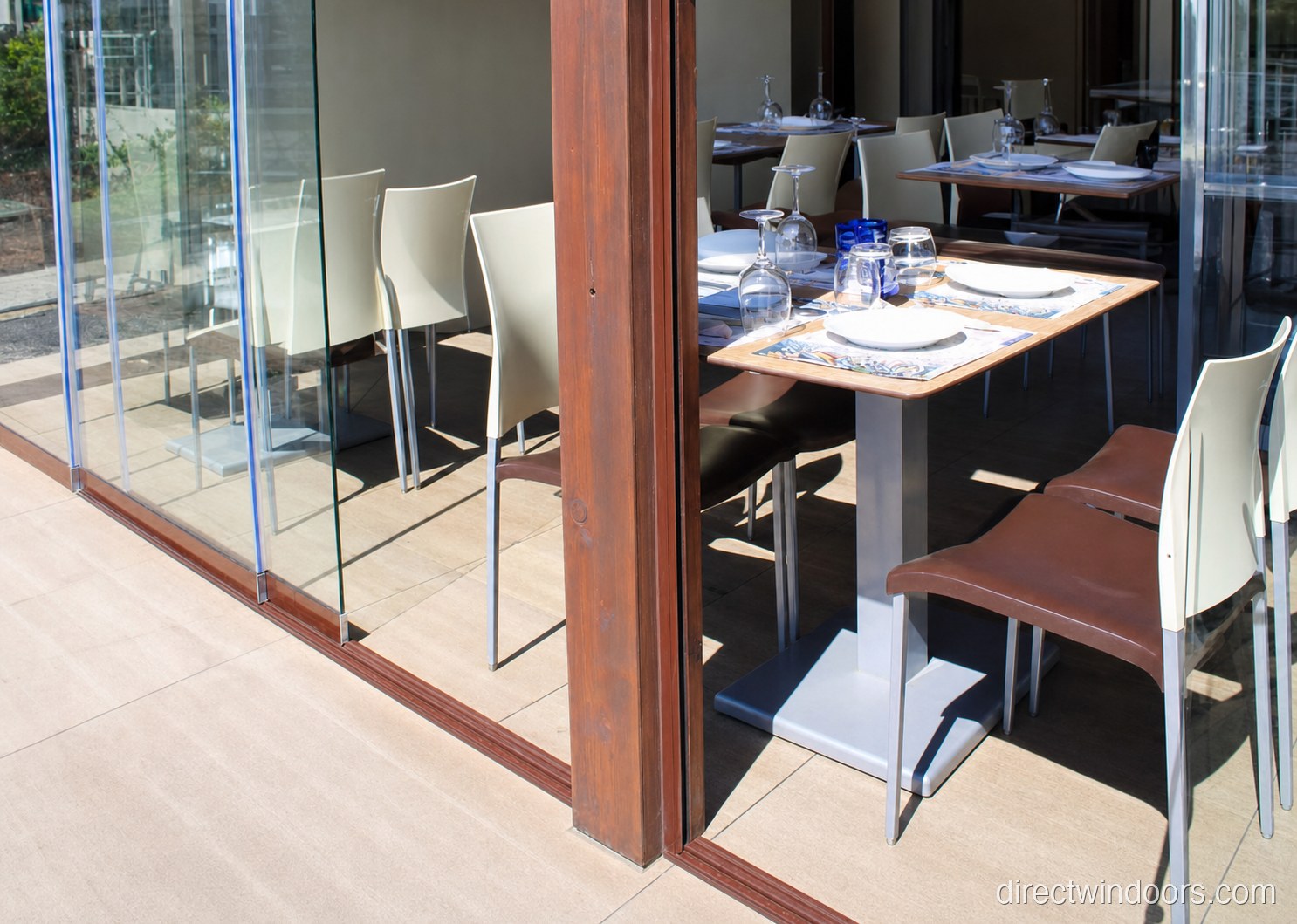

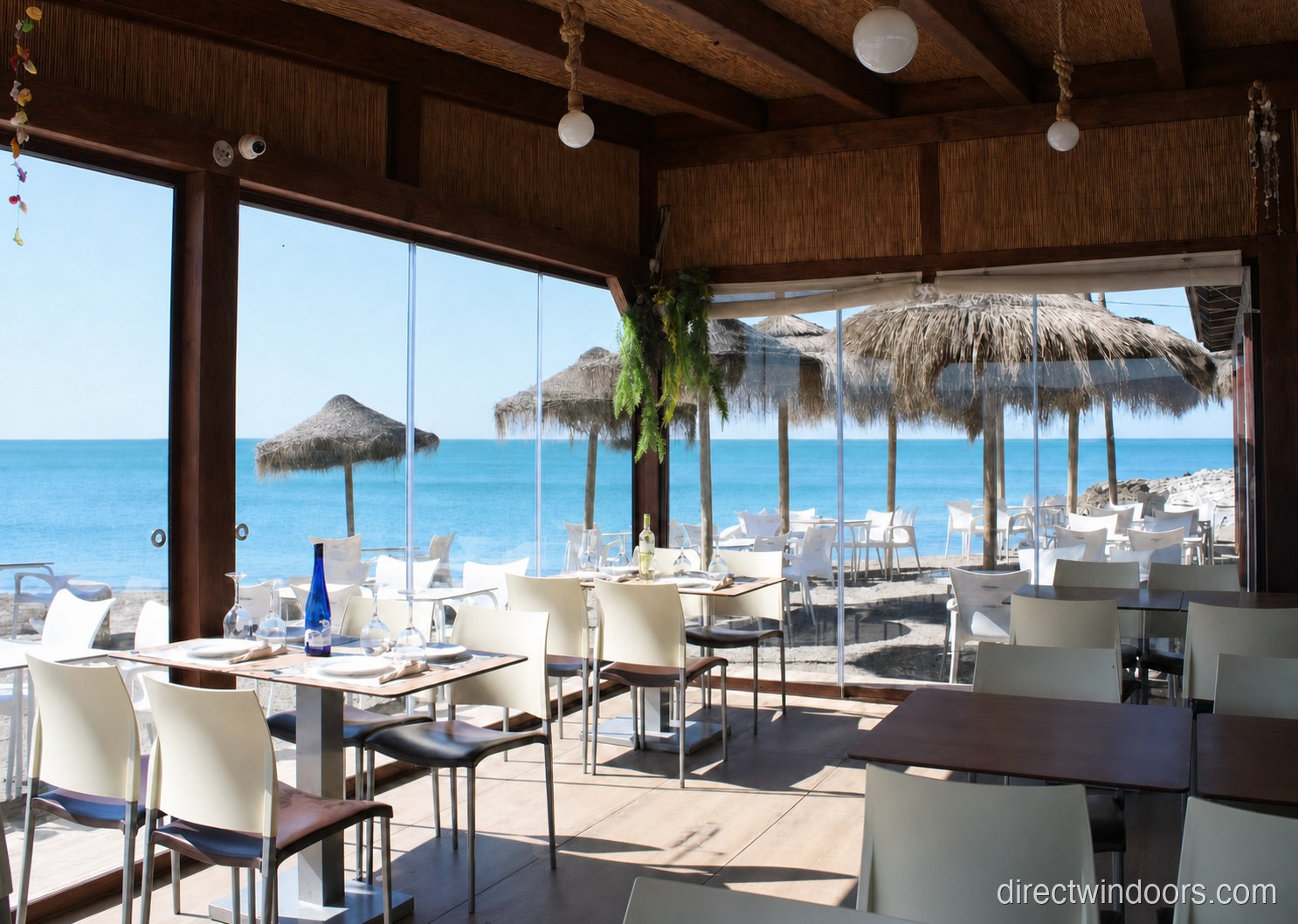

- Restaurants, cafés, beach bars — open-air front with a glass wall that disappears.
- Retail storefronts and shops — full glass face that opens wide.

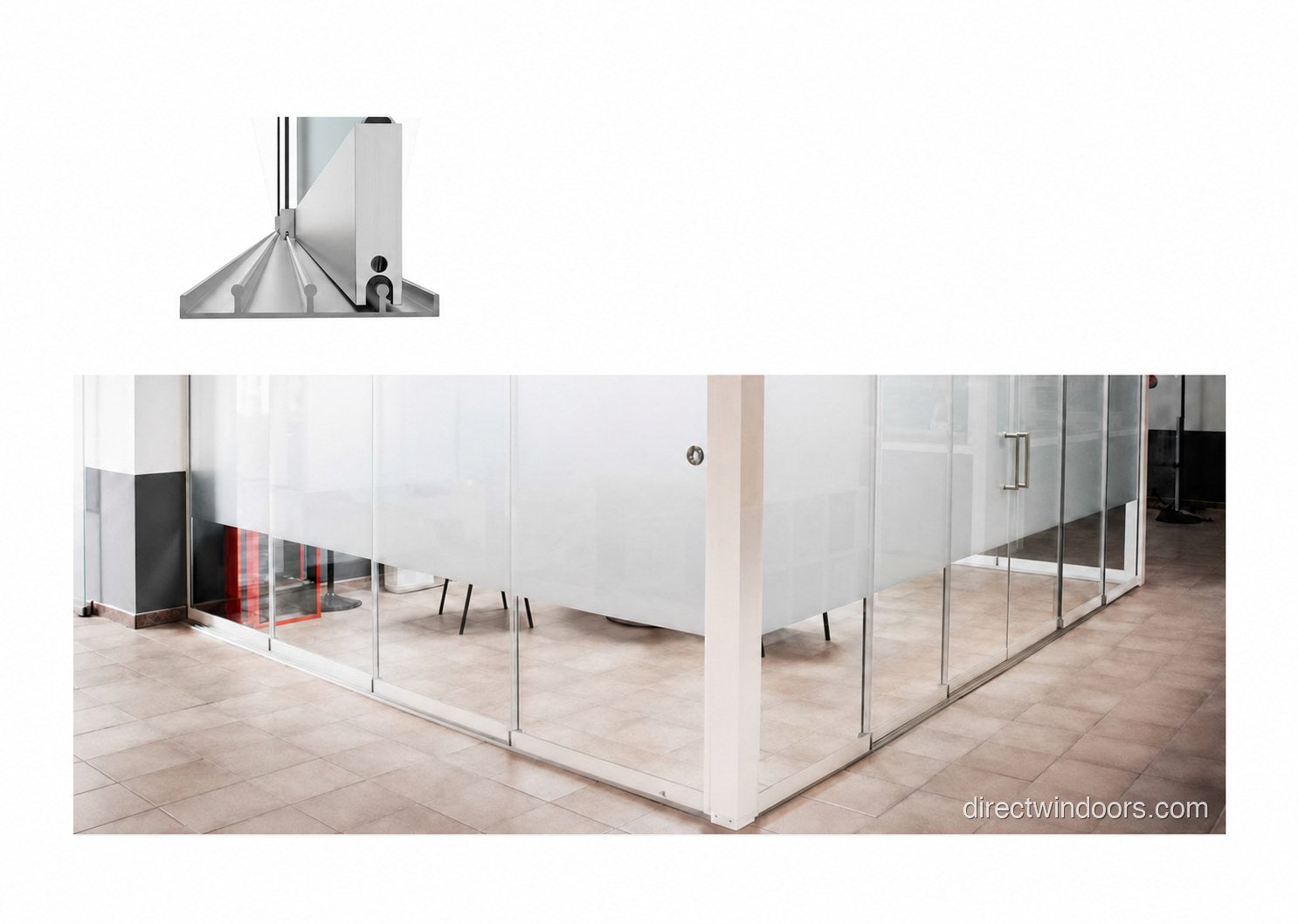

- Office partitions and conference rooms — frameless glass partitions divide space without cutting light.

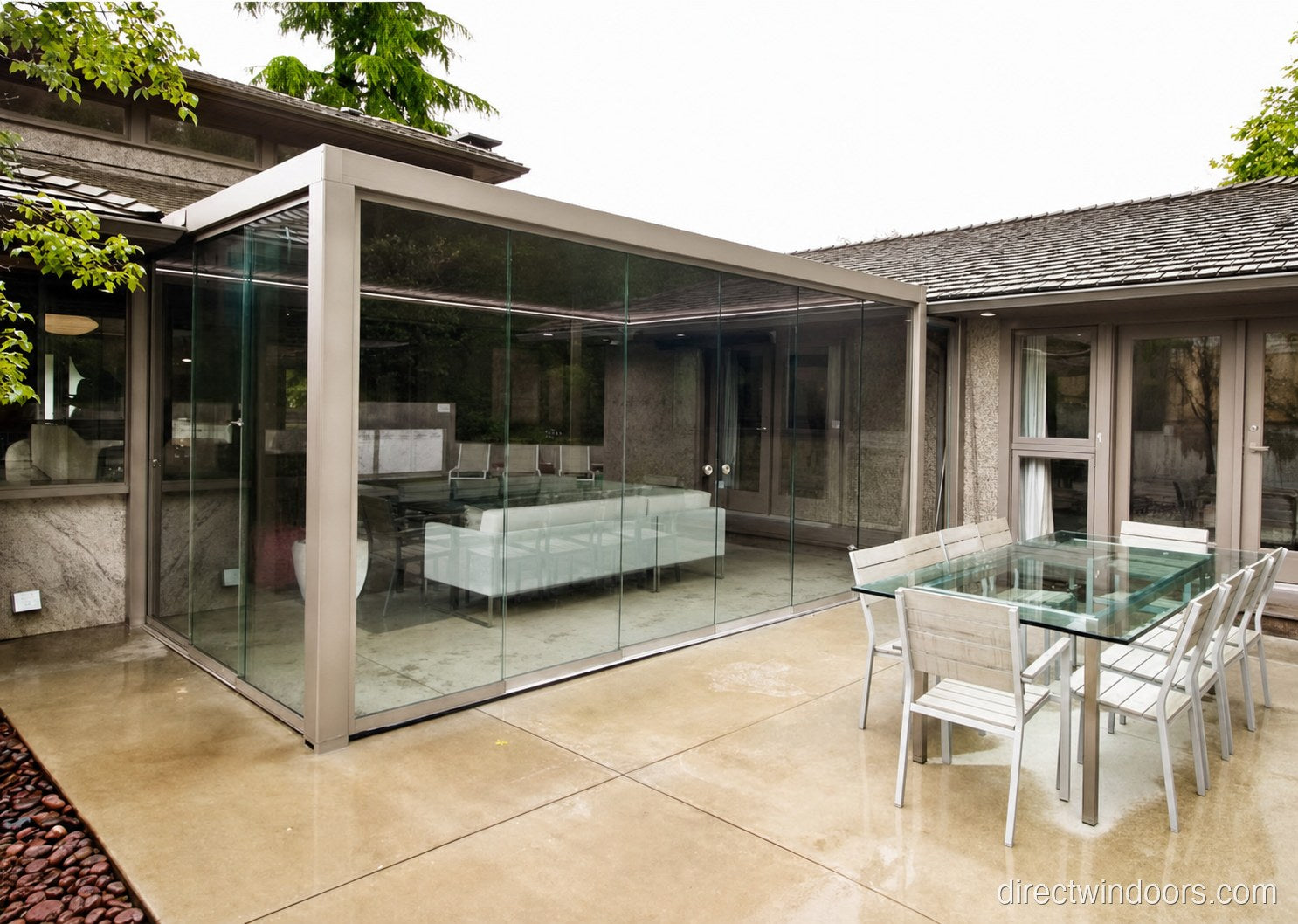

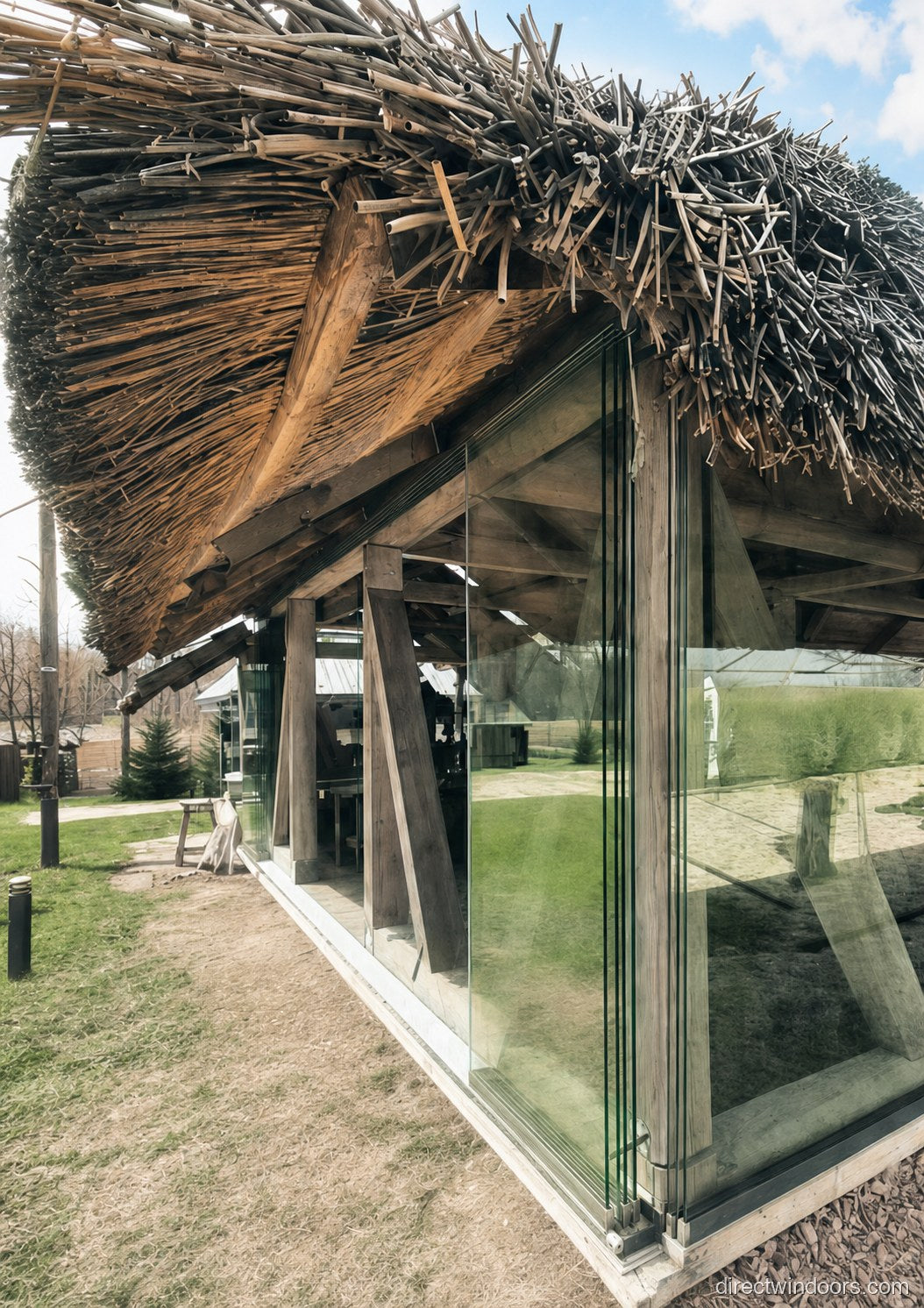

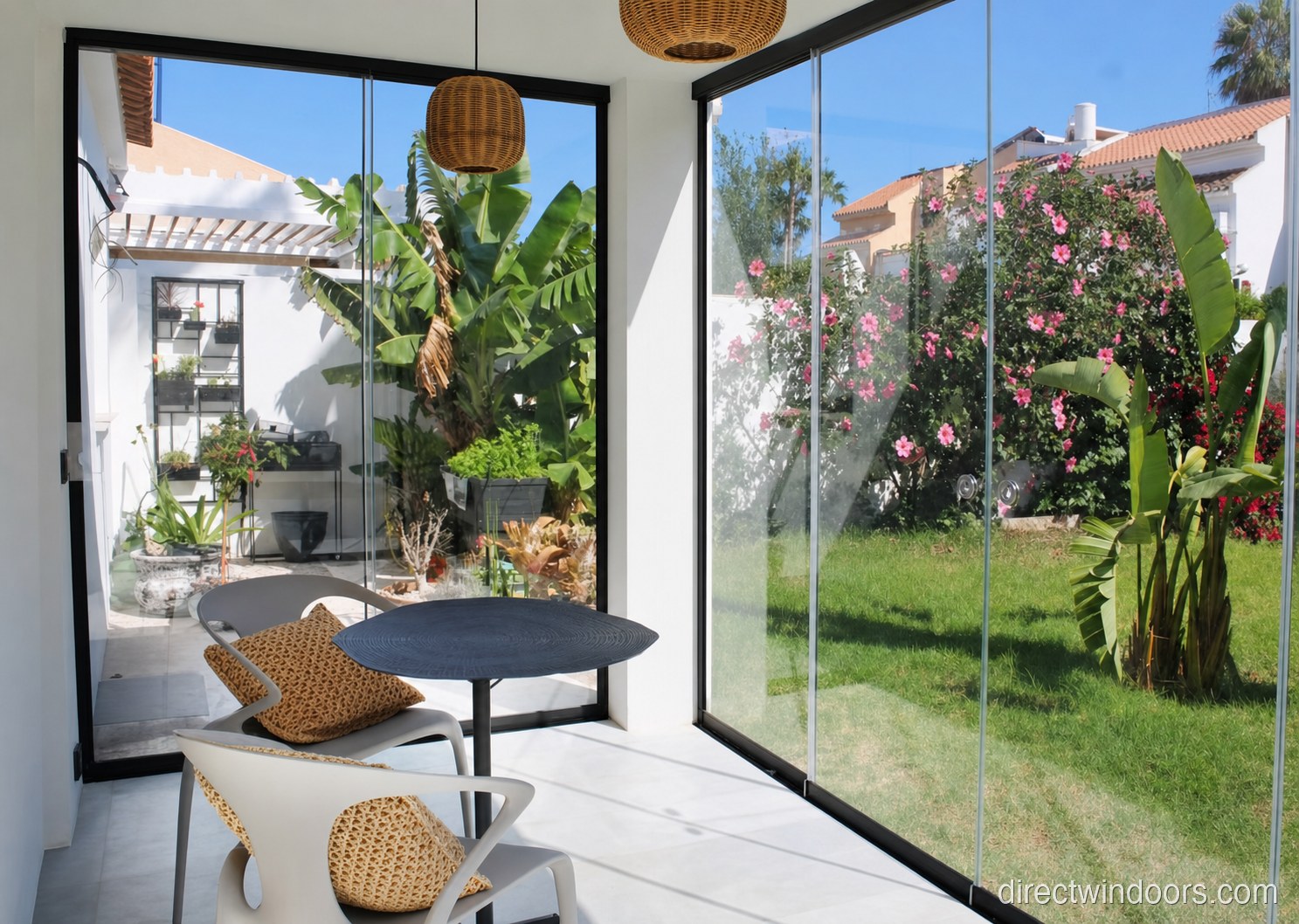

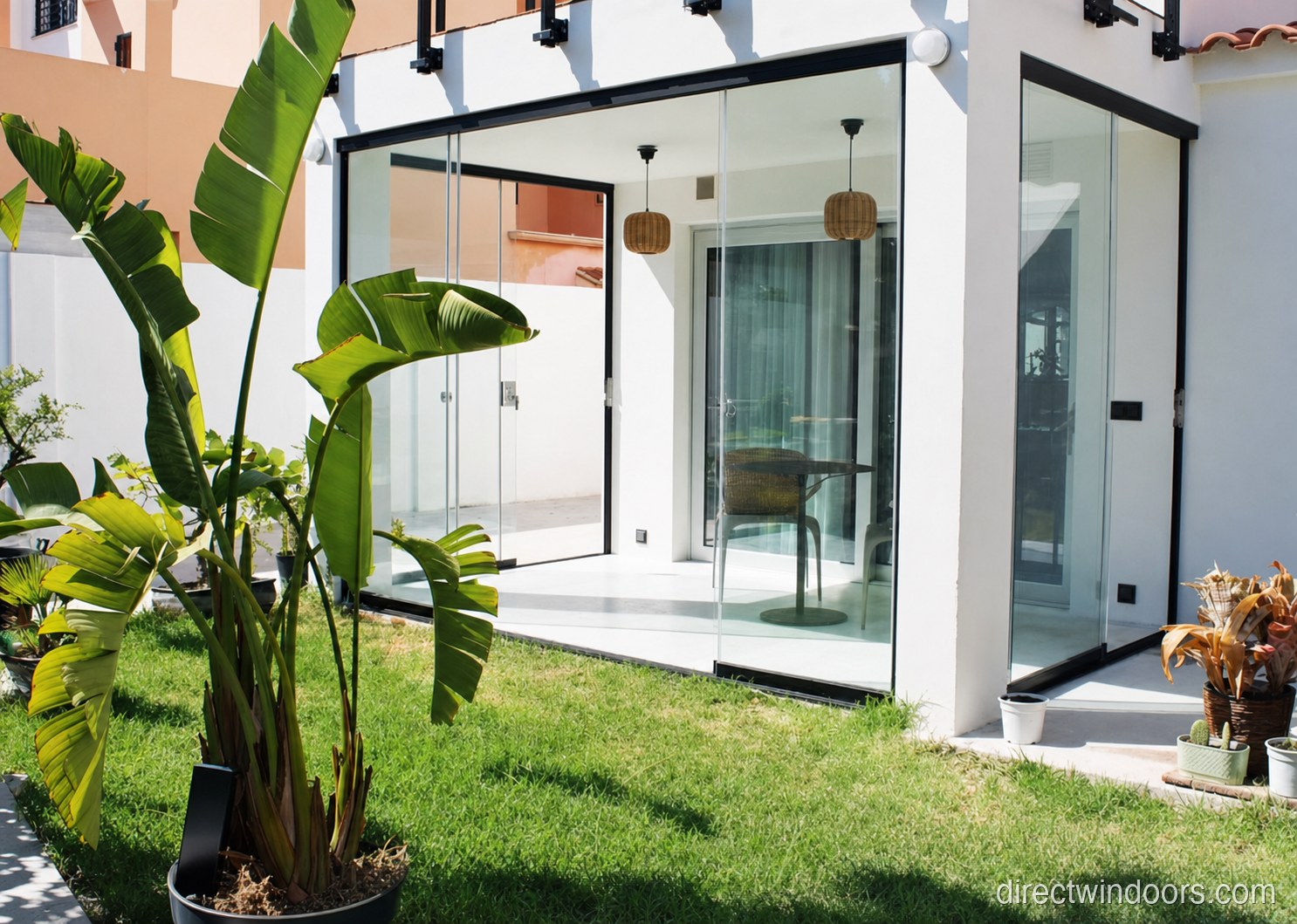

- Sunrooms, winter gardens, pergolas, verandas.

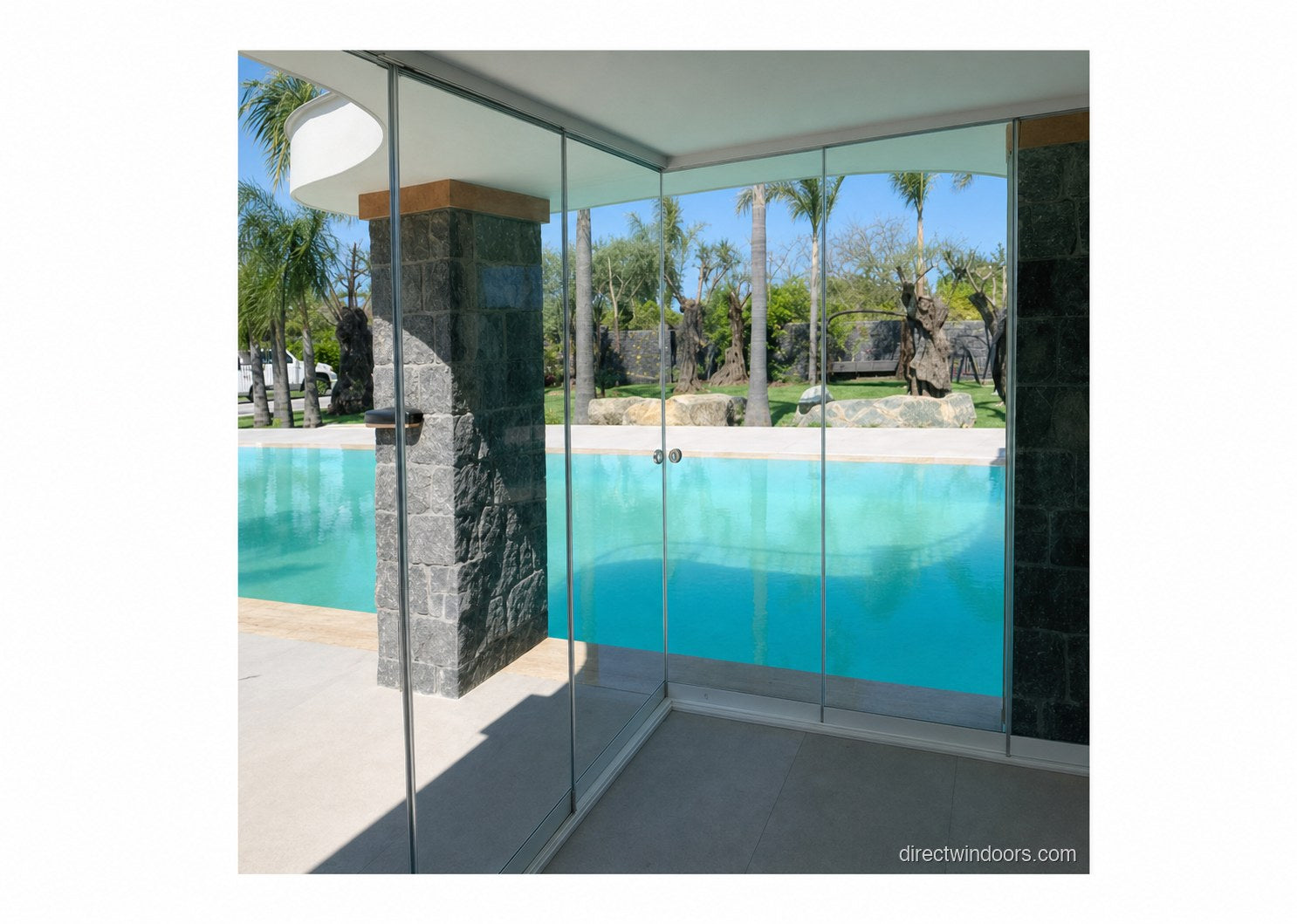

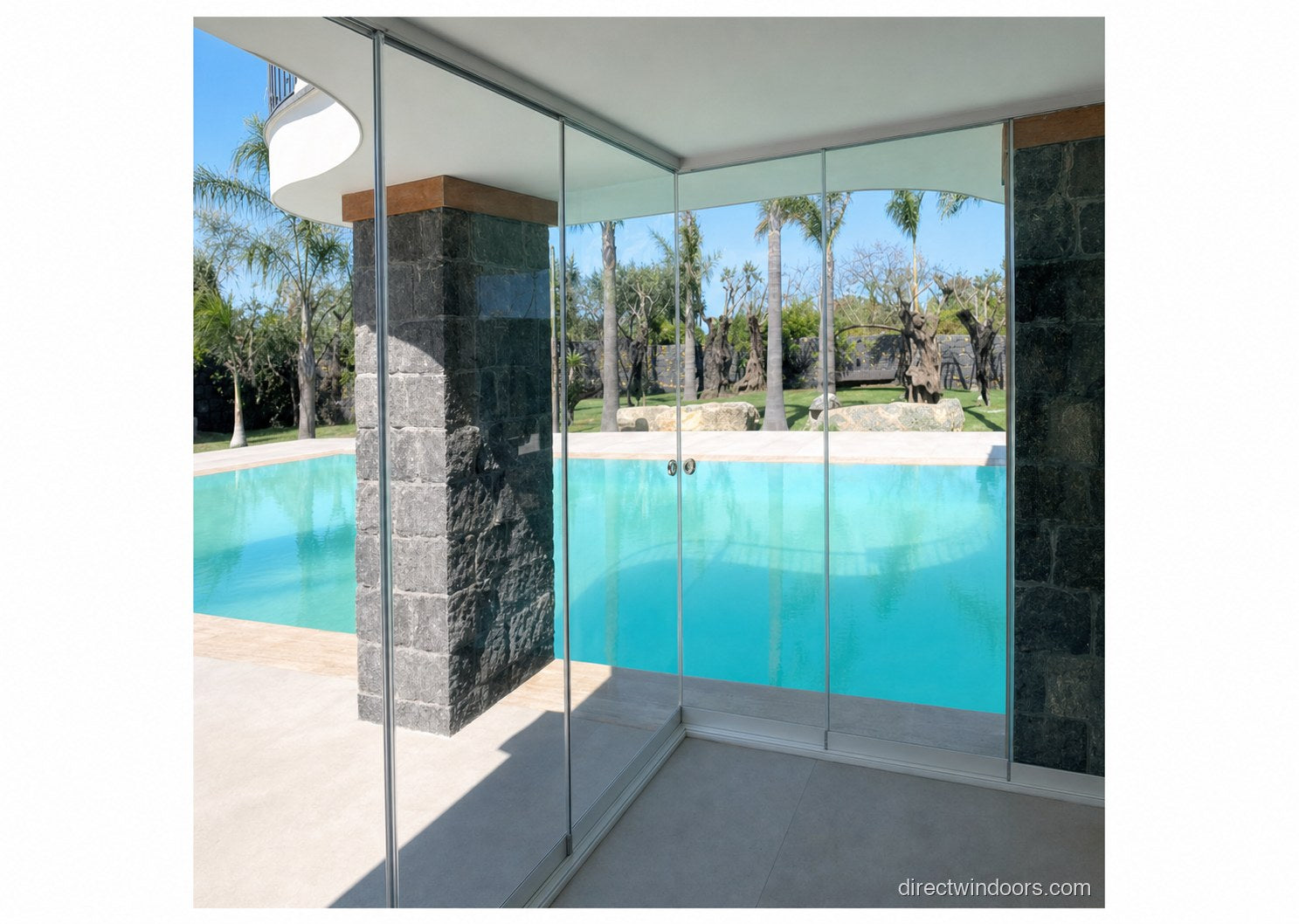

- 90° corner installations — two sections meet at a right angle with no support column.
How the System Works

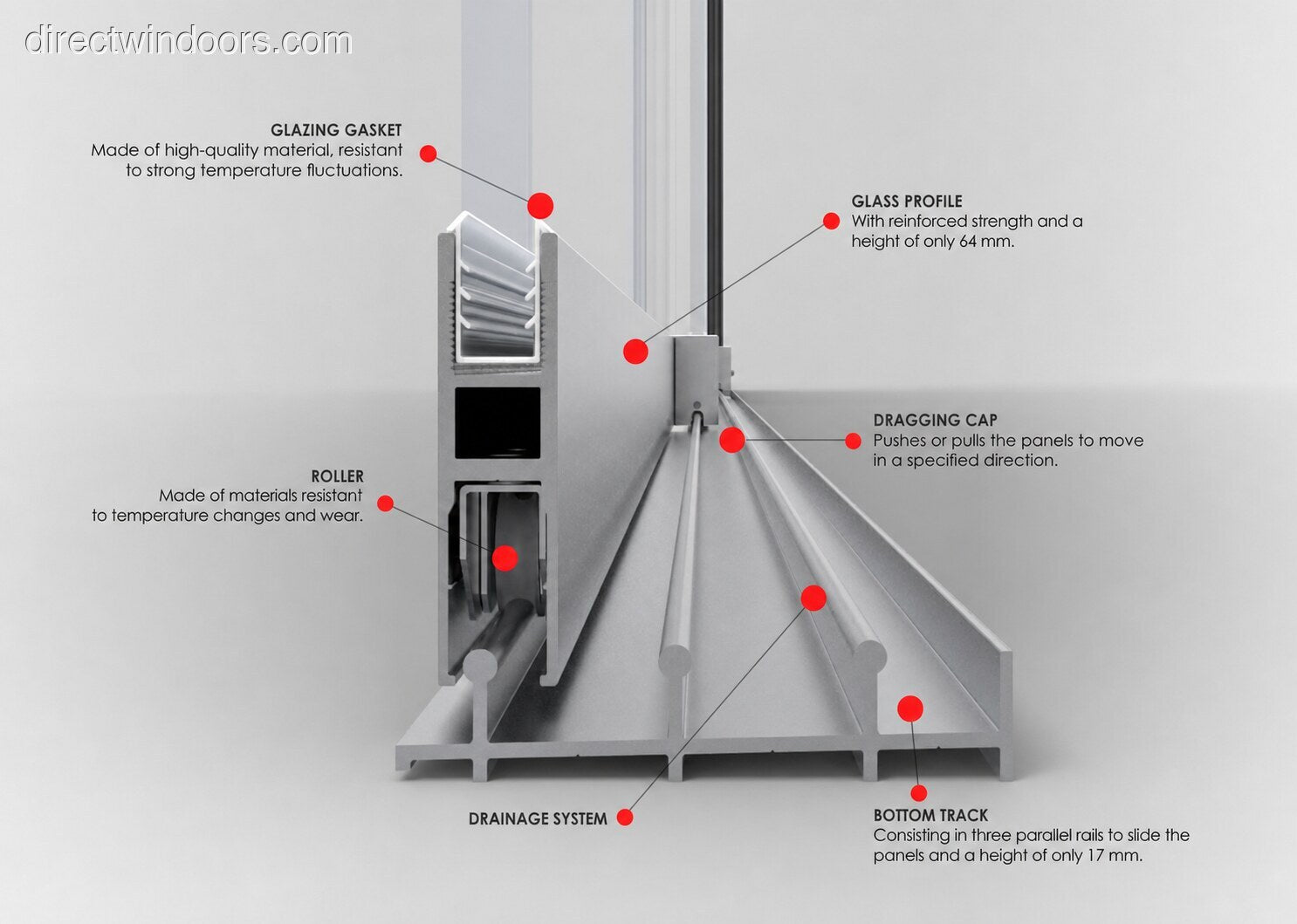

- Bottom-weighted design — panel weight rides on the bottom track, not hung from the ceiling. More stable, easier to operate.
- Unlimited opening width — no cap on panels or rails in a single opening.
- Self-adjusting top — 1 in (25 mm) clearance lets the system adapt to building movement over time.

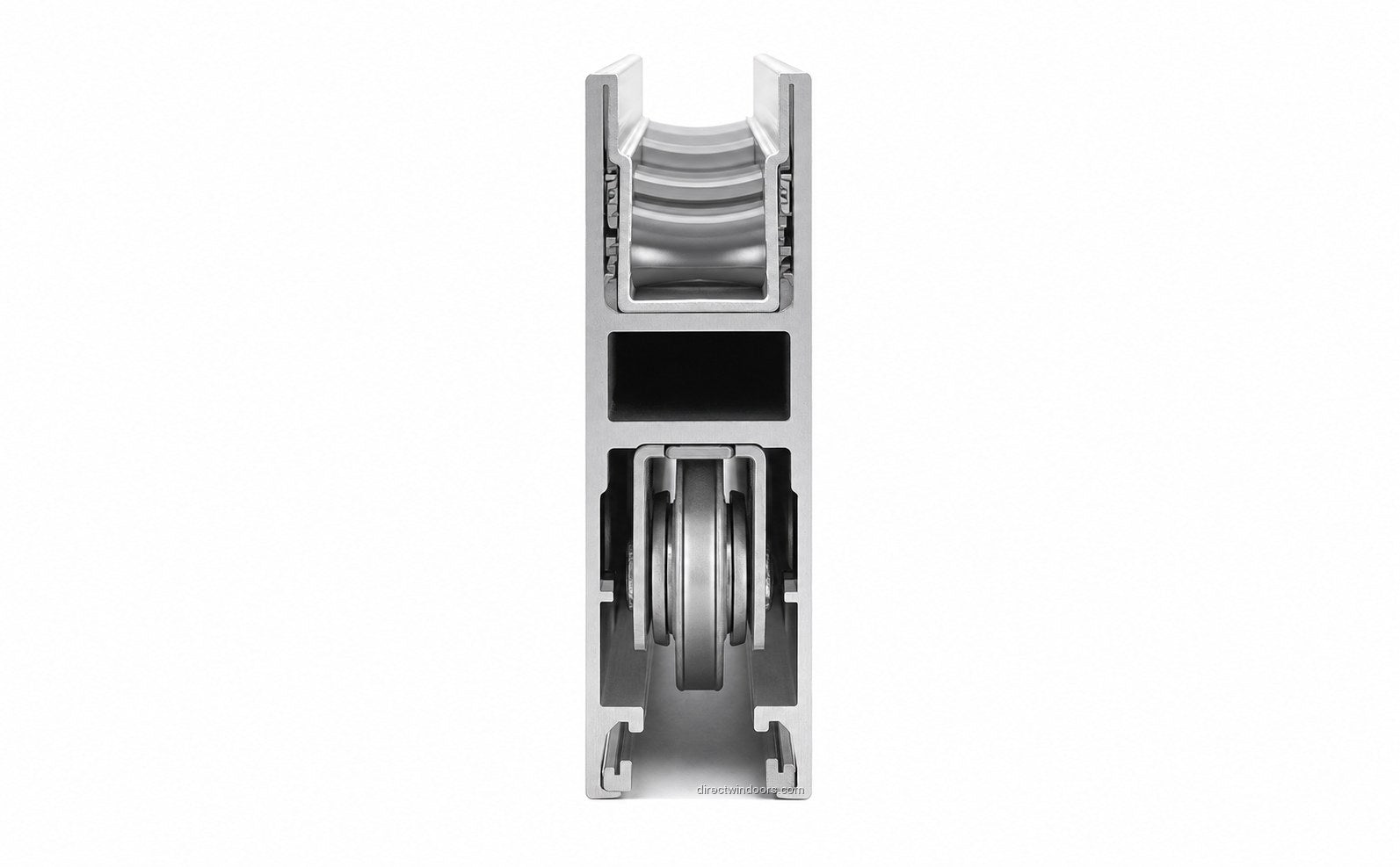

- Stainless steel rollers — maintenance-free, rated up to 330 lb (150 kg) per panel.
- Drainage channel built into the bottom track — anodised aluminum with water evacuation openings.
- Minimum 3 bottom rails — every configuration starts with 3 rails; extensions add panel capacity.
Glass Options
- Standard thickness: 3/8 in (10 mm)
- Heavy-duty thickness: 1/2 in (12 mm)
- Glass type: tempered (12 mm requires structural adhesive plus activator at installation)

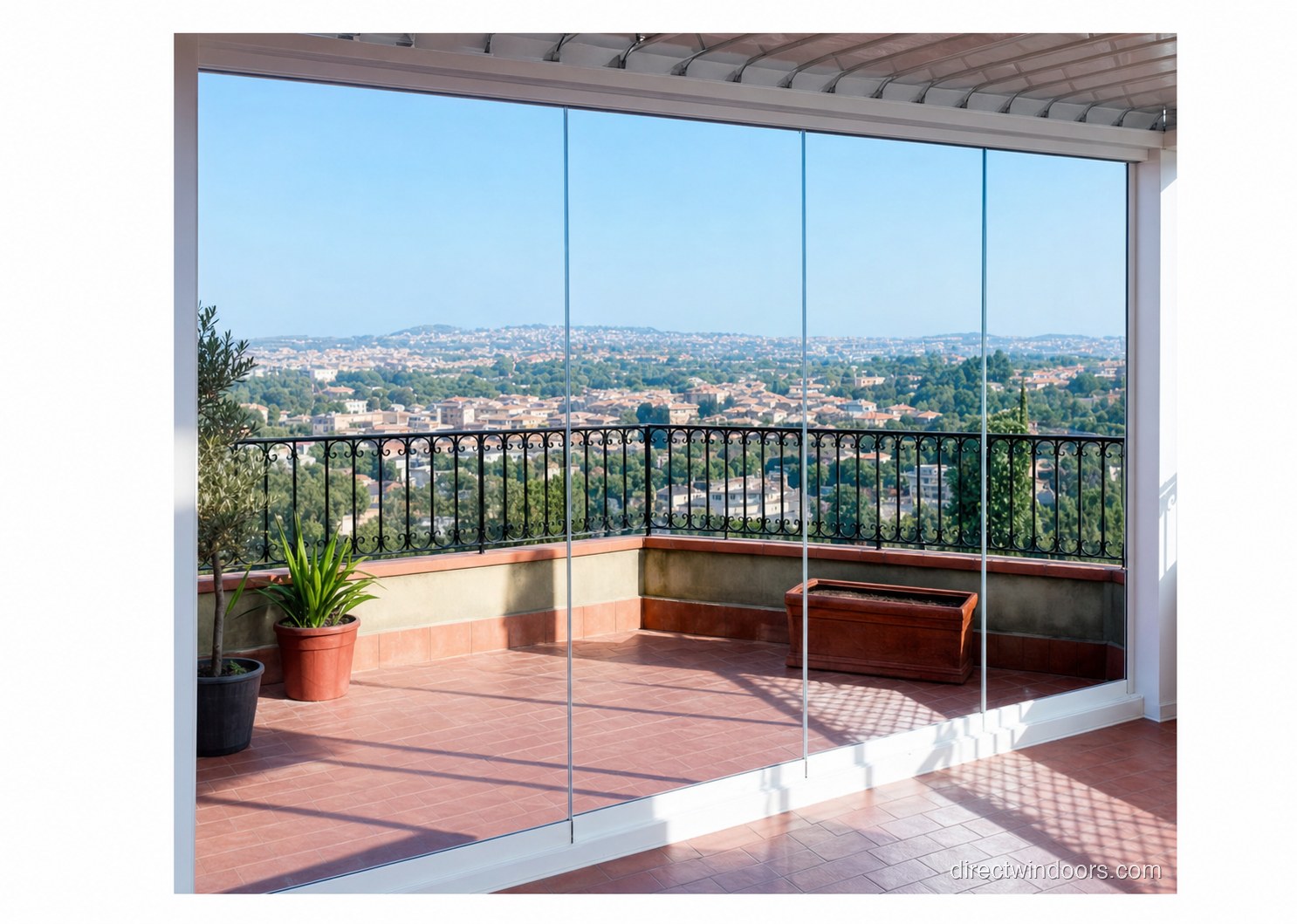

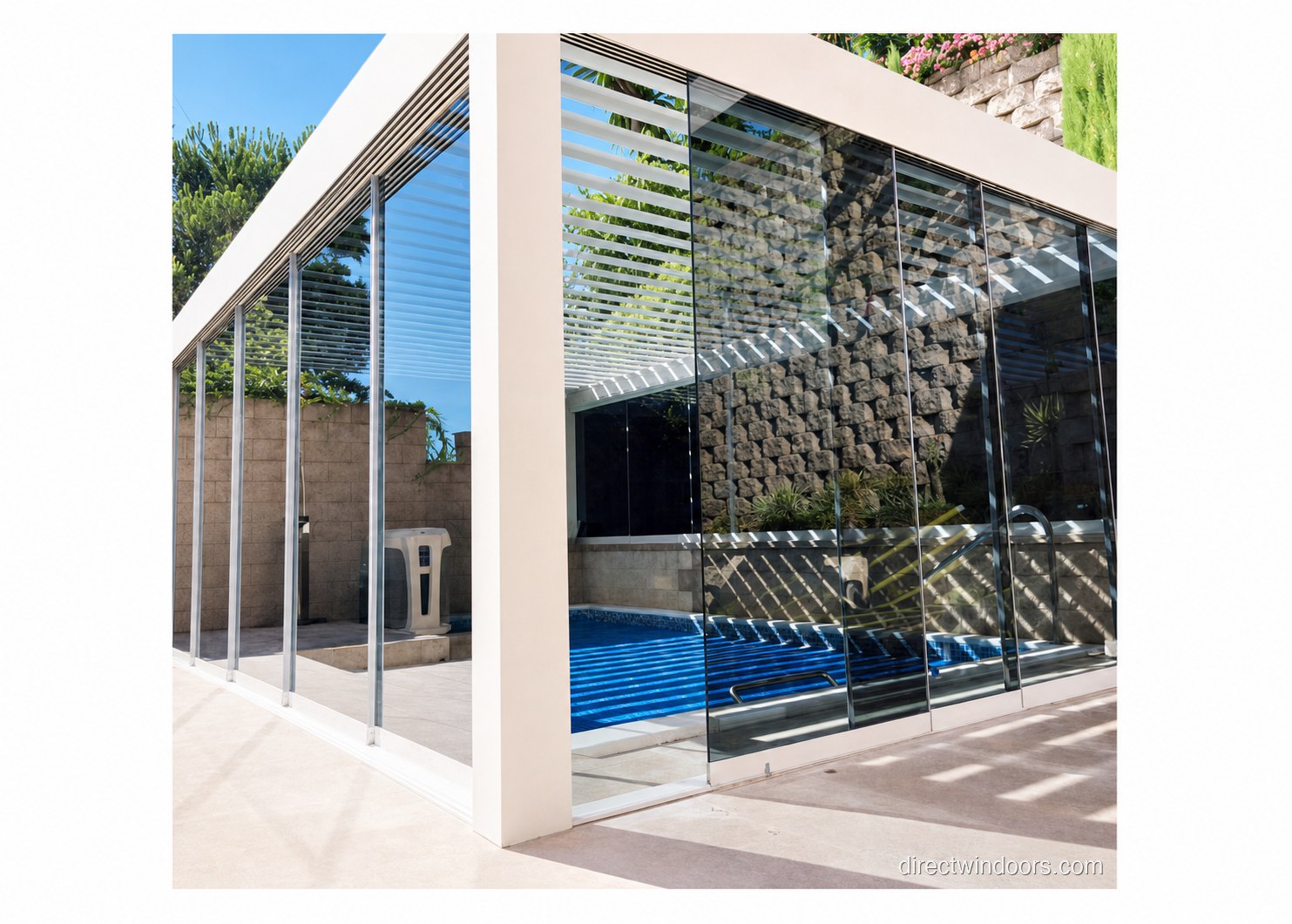

- Tinted glass: polymer interlayer
- Weight rule: glass averages 5.1 lb per sq ft (25 kg per m²). Total panel weight cannot exceed 330 lb (150 kg).

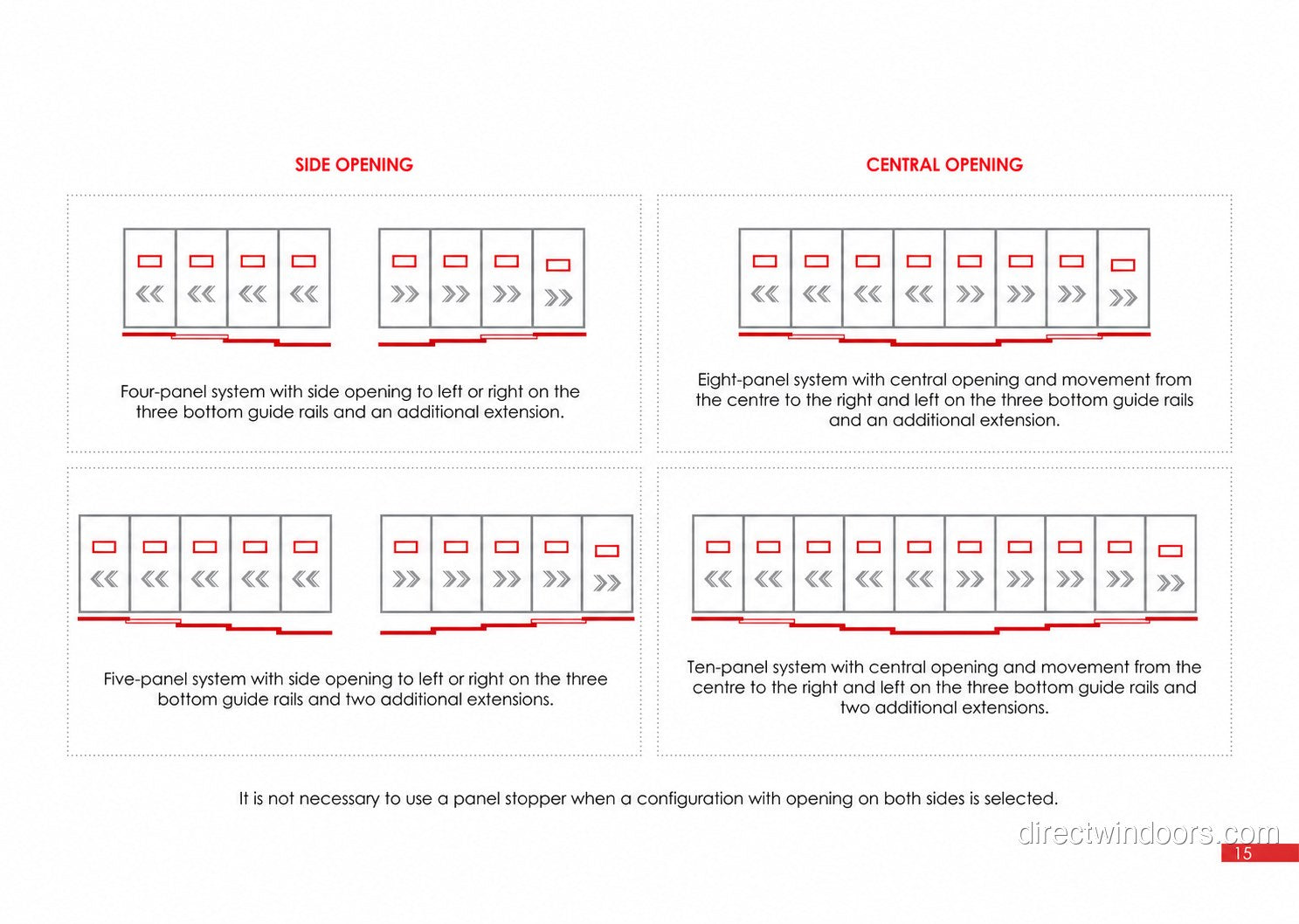

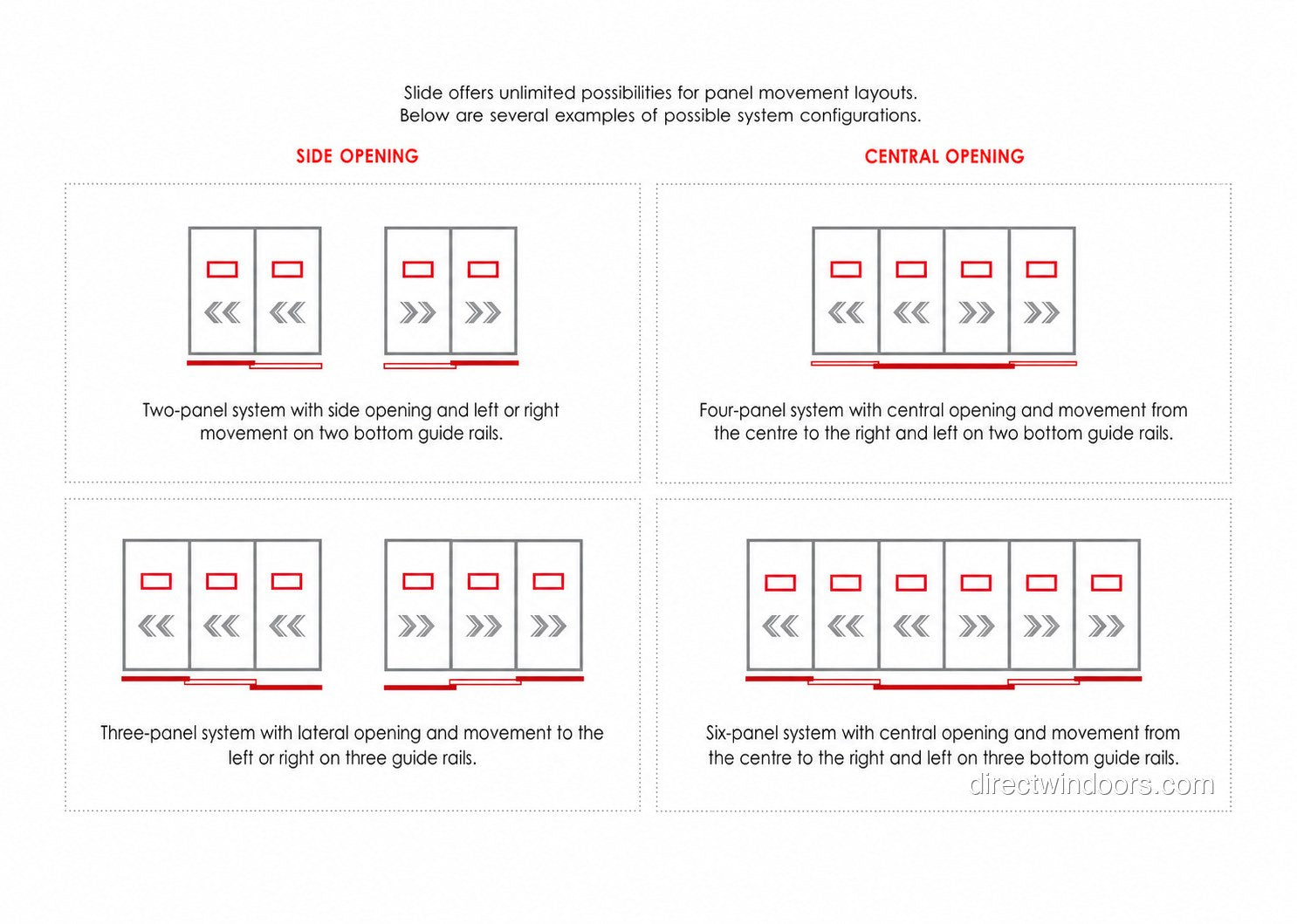

Configurations

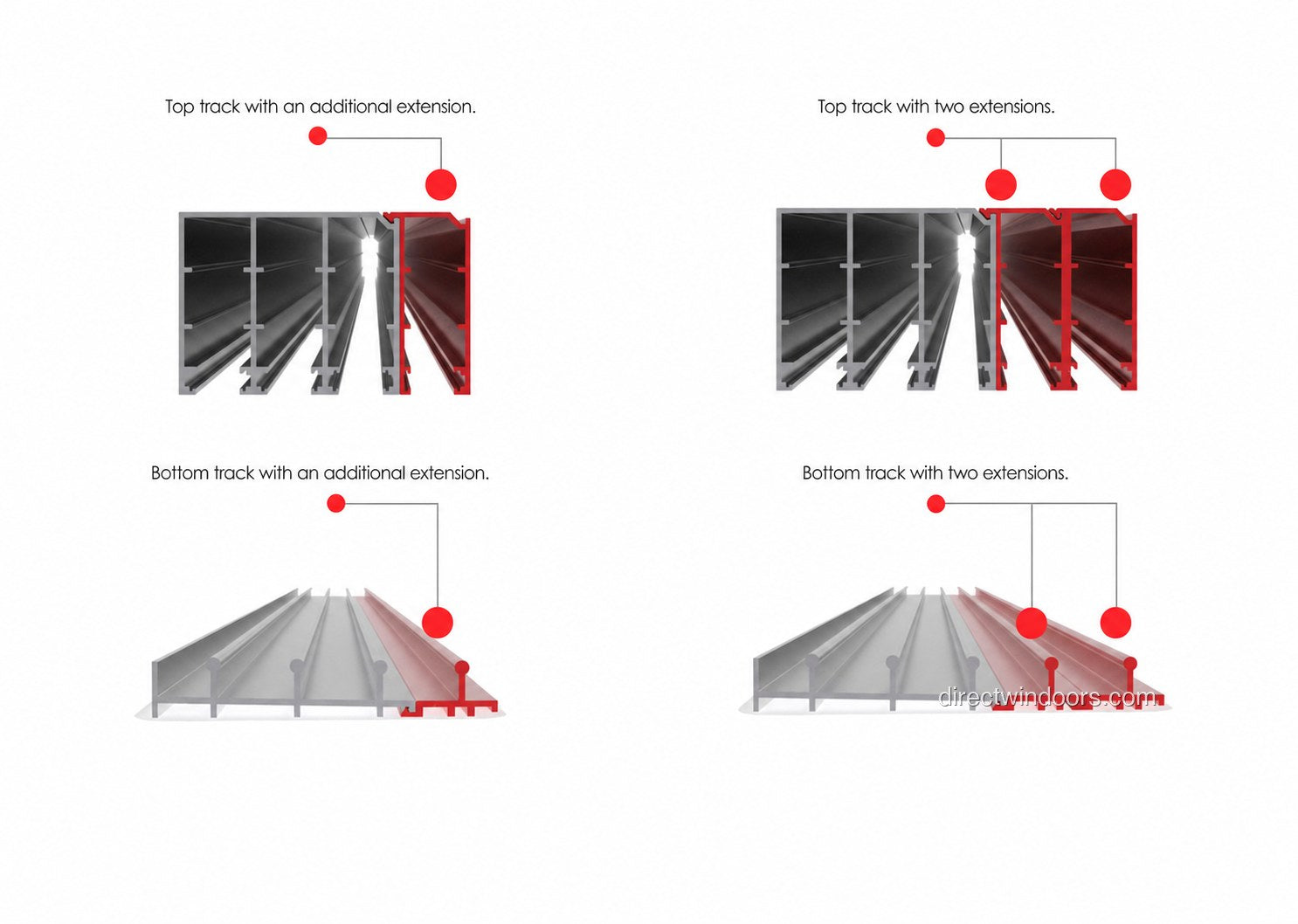

All systems use a minimum of 3 bottom rails. Additional extensions add panel capacity.
- 2-panel side opening
- 3-panel side opening
- 4-panel central opening — panels split from center
- 4-panel side opening (3 rails + 1 extension)
- 5-panel side opening (3 rails + 2 extensions)
- 6-panel central opening
- 8-panel central opening (3 rails + 1 extension)
- 10-panel central opening (3 rails + 2 extensions)

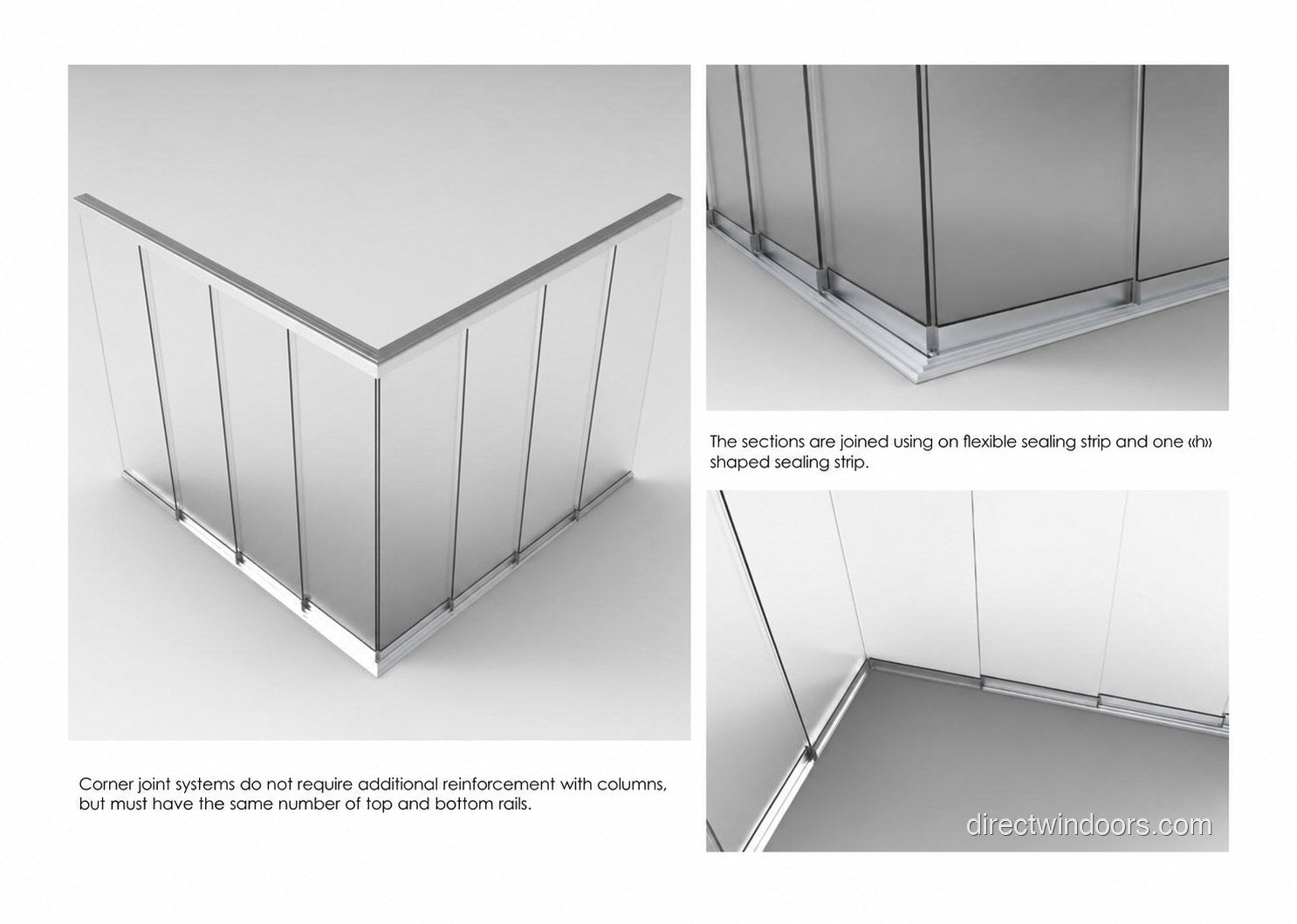

- 90° corner — two sections meet at a right angle, no support column
- Dual-direction side opening — no fixed panel, double latch
Hardware
Handle

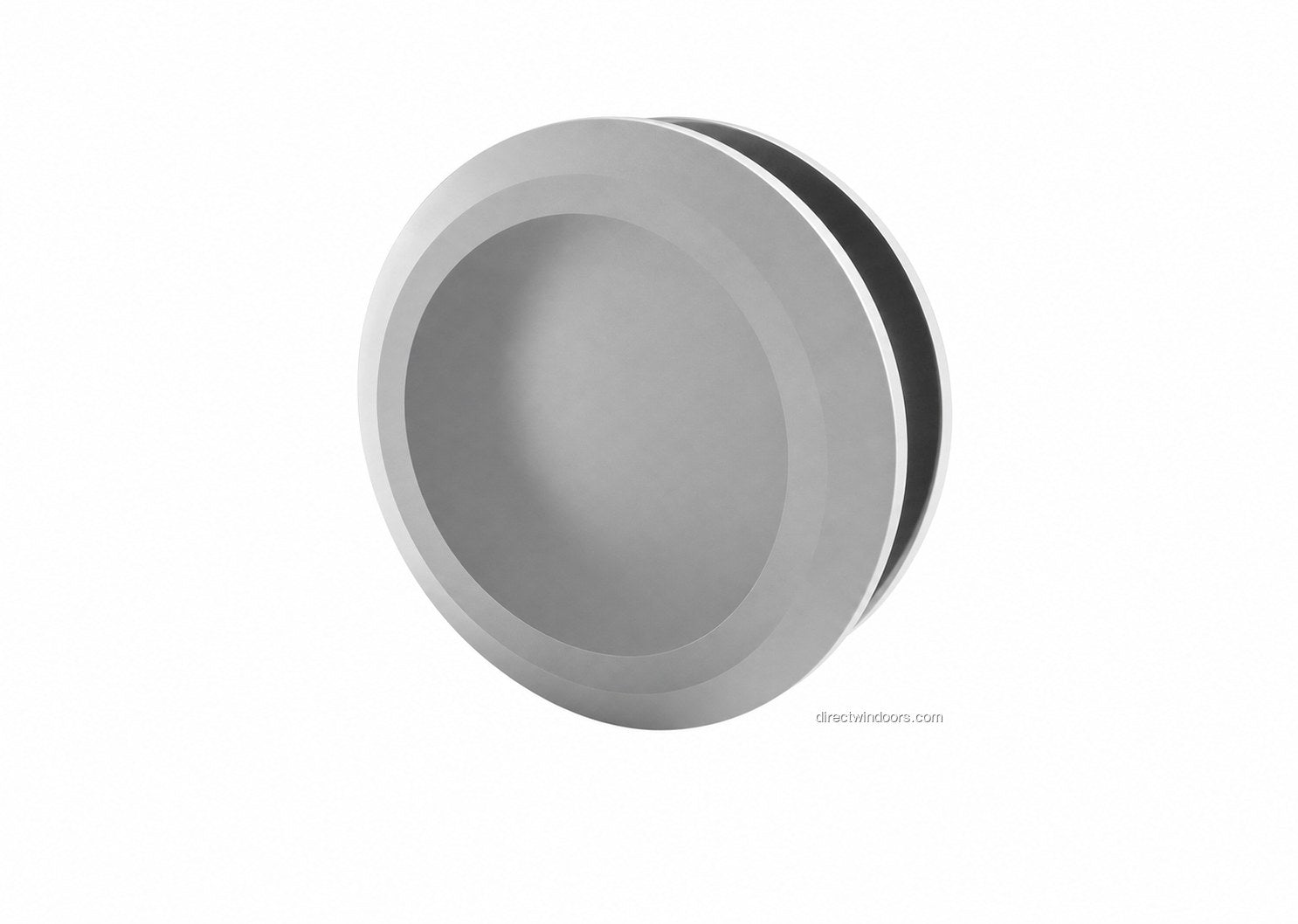

Flush recessed handle in stainless steel, hole-cut in the glass. Standard on all panels.
Locks
| Lock | Specification |
|---|---|

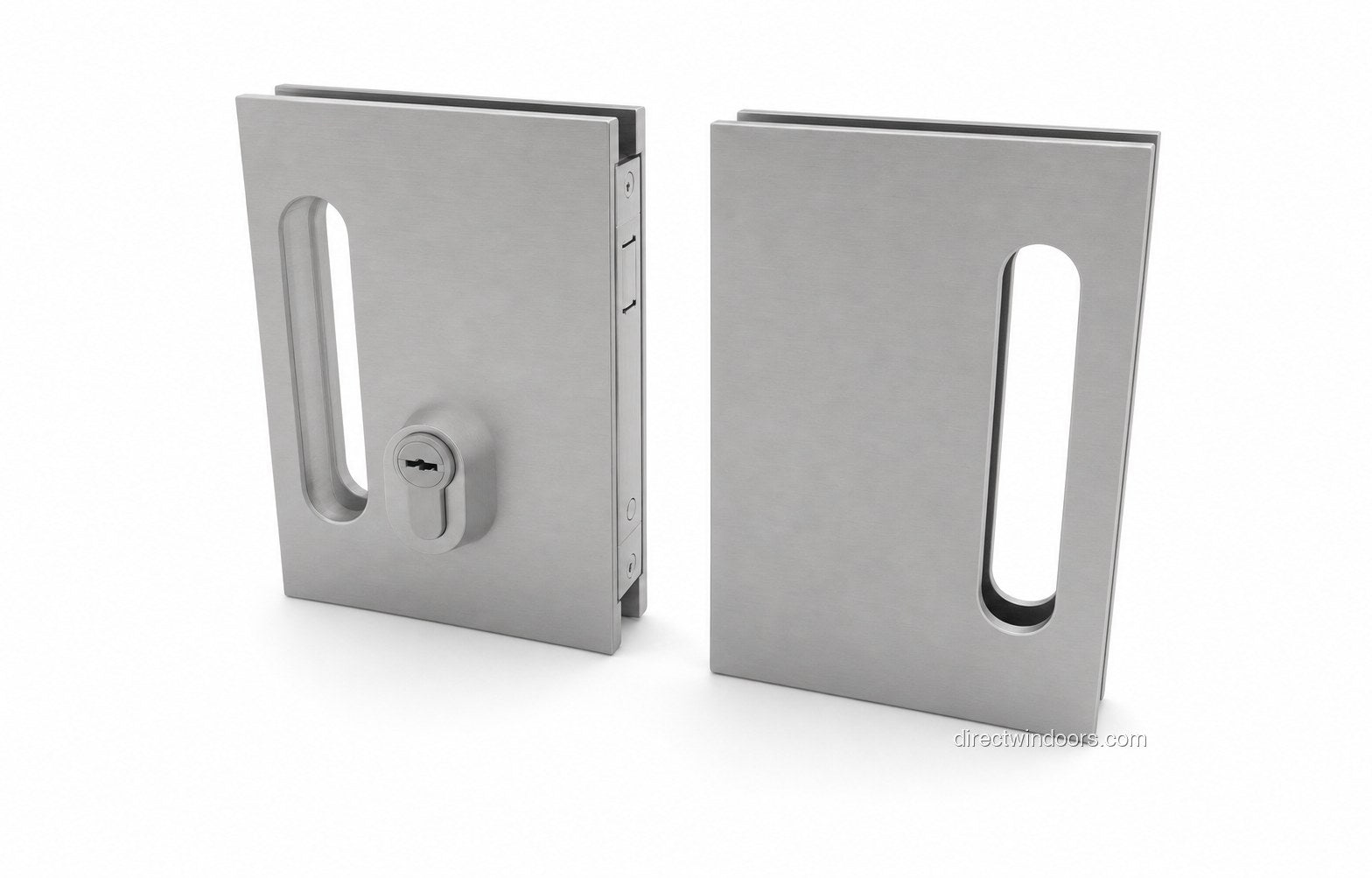

| Standard Lock | 5-7/8 × 4-1/4 × 2-3/8 in (150 × 110 × 60 mm) · satin matte stainless steel · fits 3/8 in (10 mm) and 1/2 in (12 mm) glass · cylinder both sides |

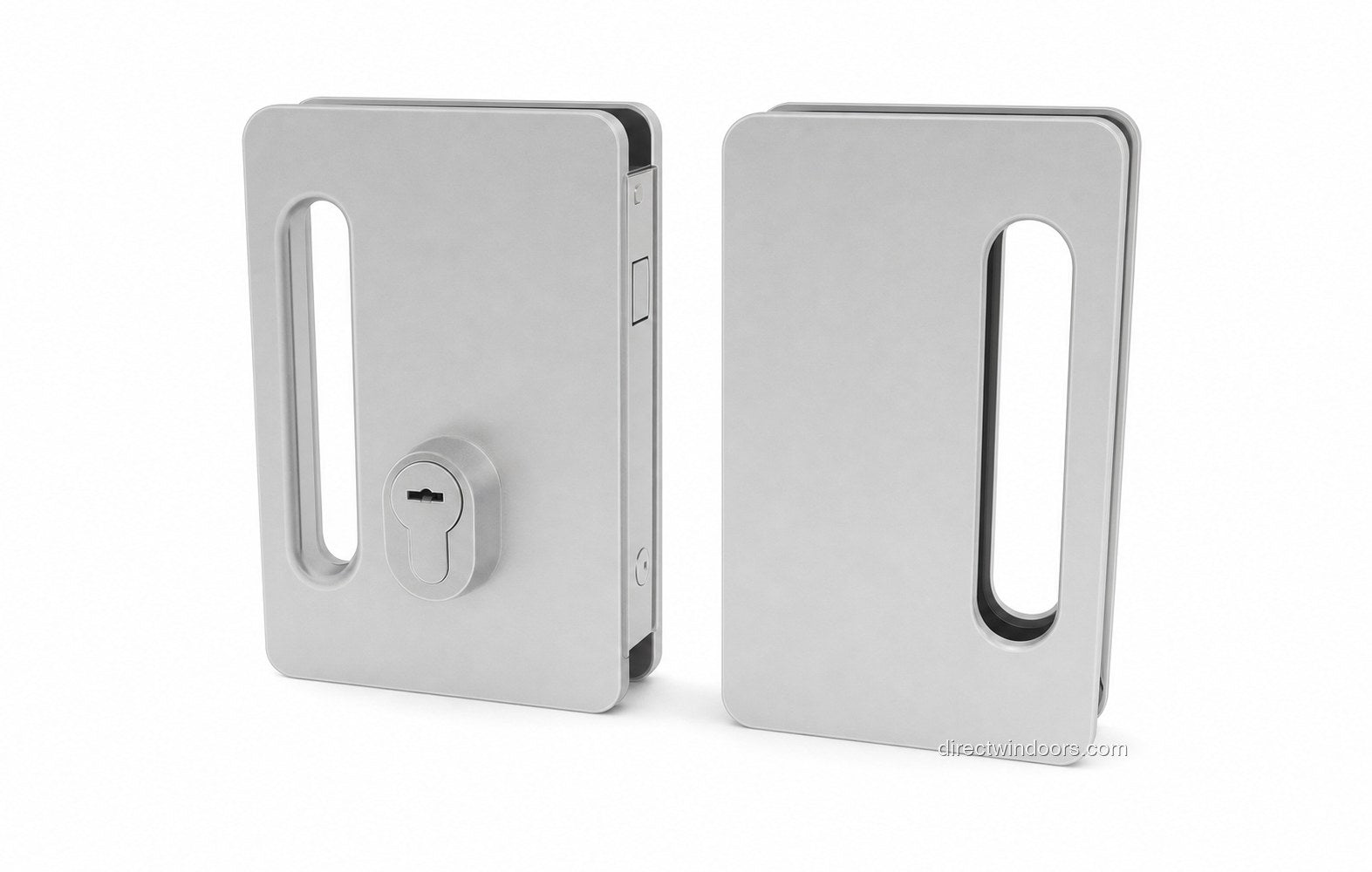

| Premium Lock | 6-1/8 × 3-7/8 × 2-3/8 in (155 × 100 × 62 mm) · anodised aluminum · fits 3/8 in (10 mm) glass · cylinder both sides |

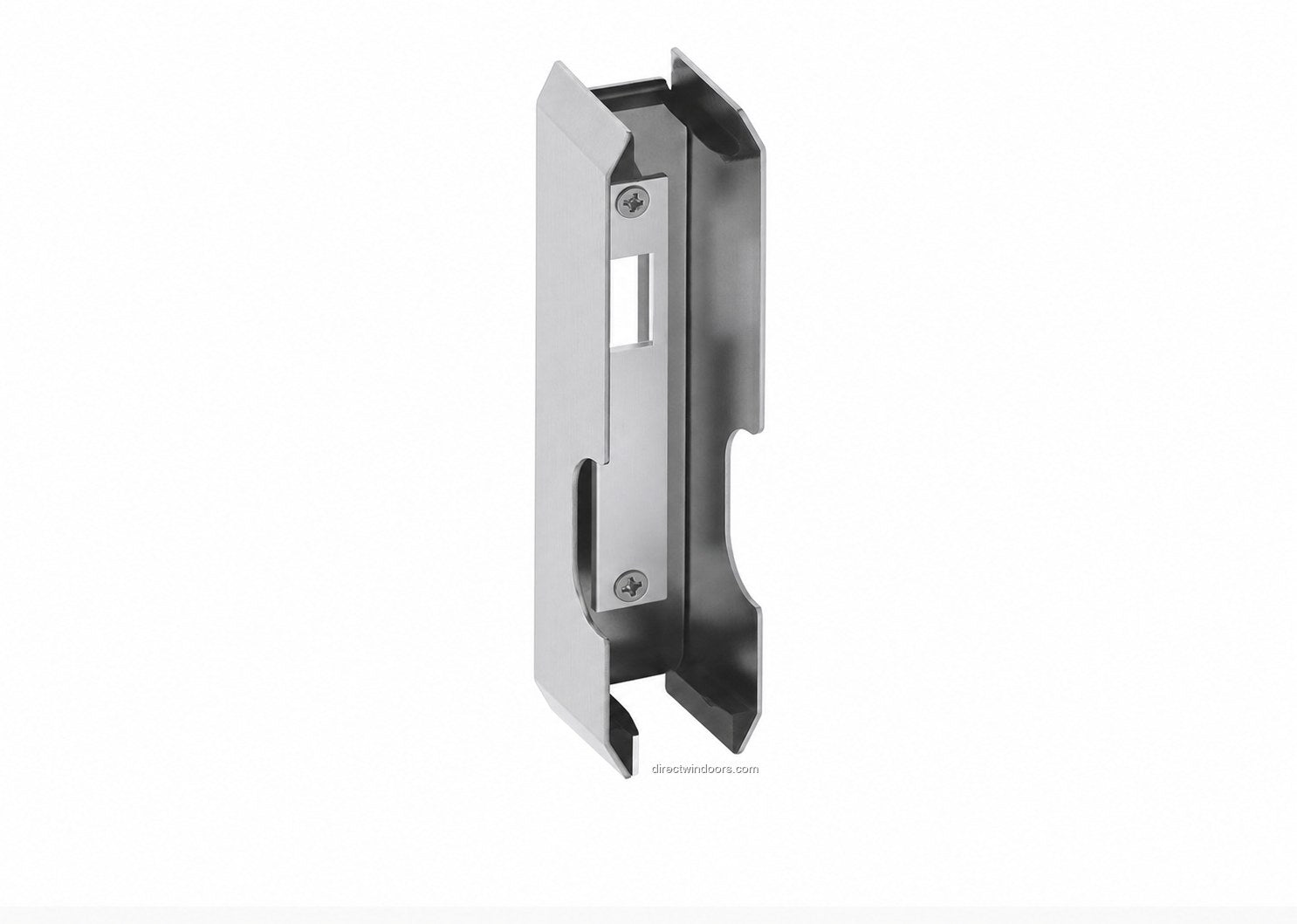

| U strike plate | 6-3/8 in (163 mm) · stainless steel · color-matched |
Latches & Stoppers

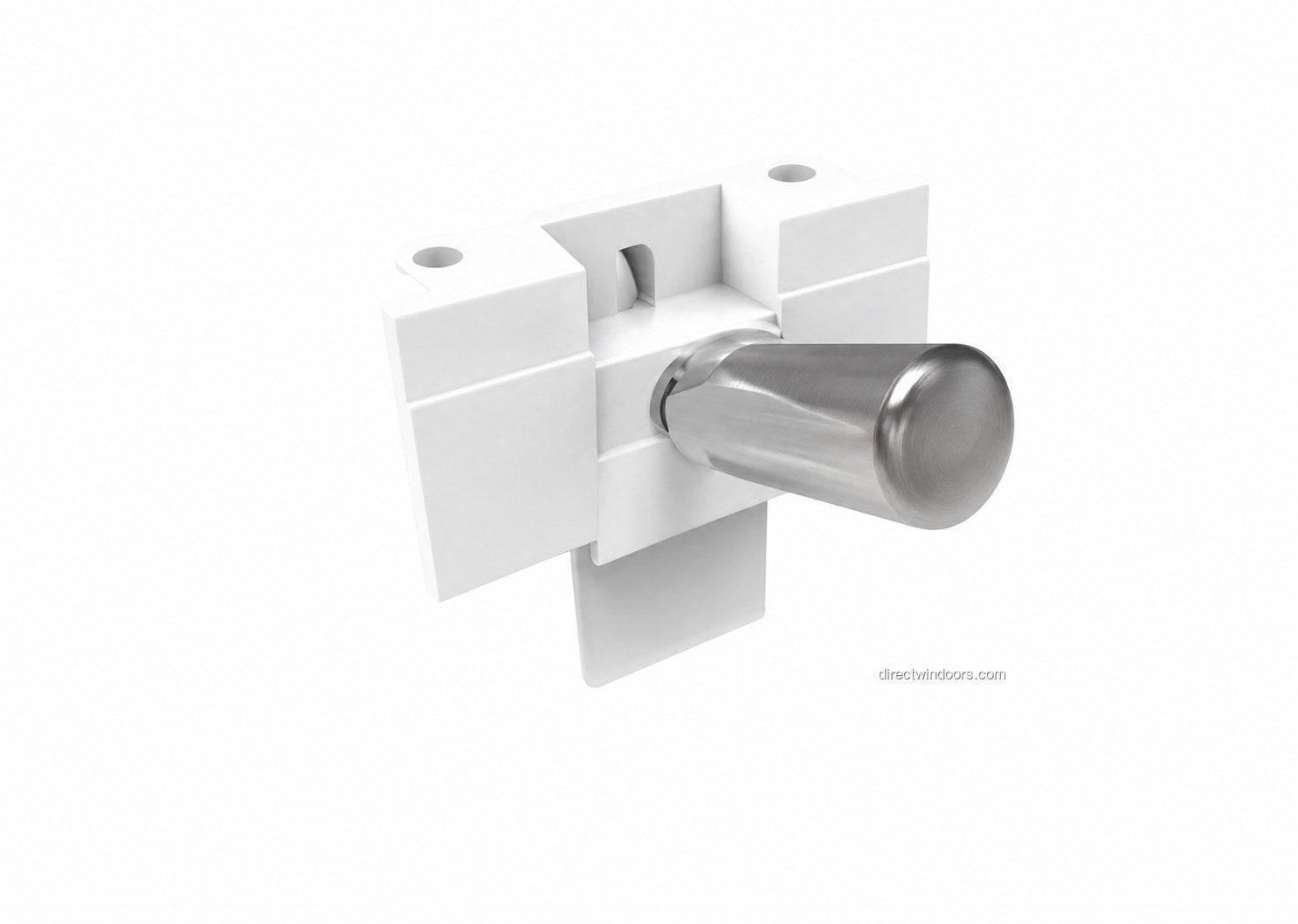

- Bottom latch — stainless steel and polymer, installed in the panel profile. Standard, included.

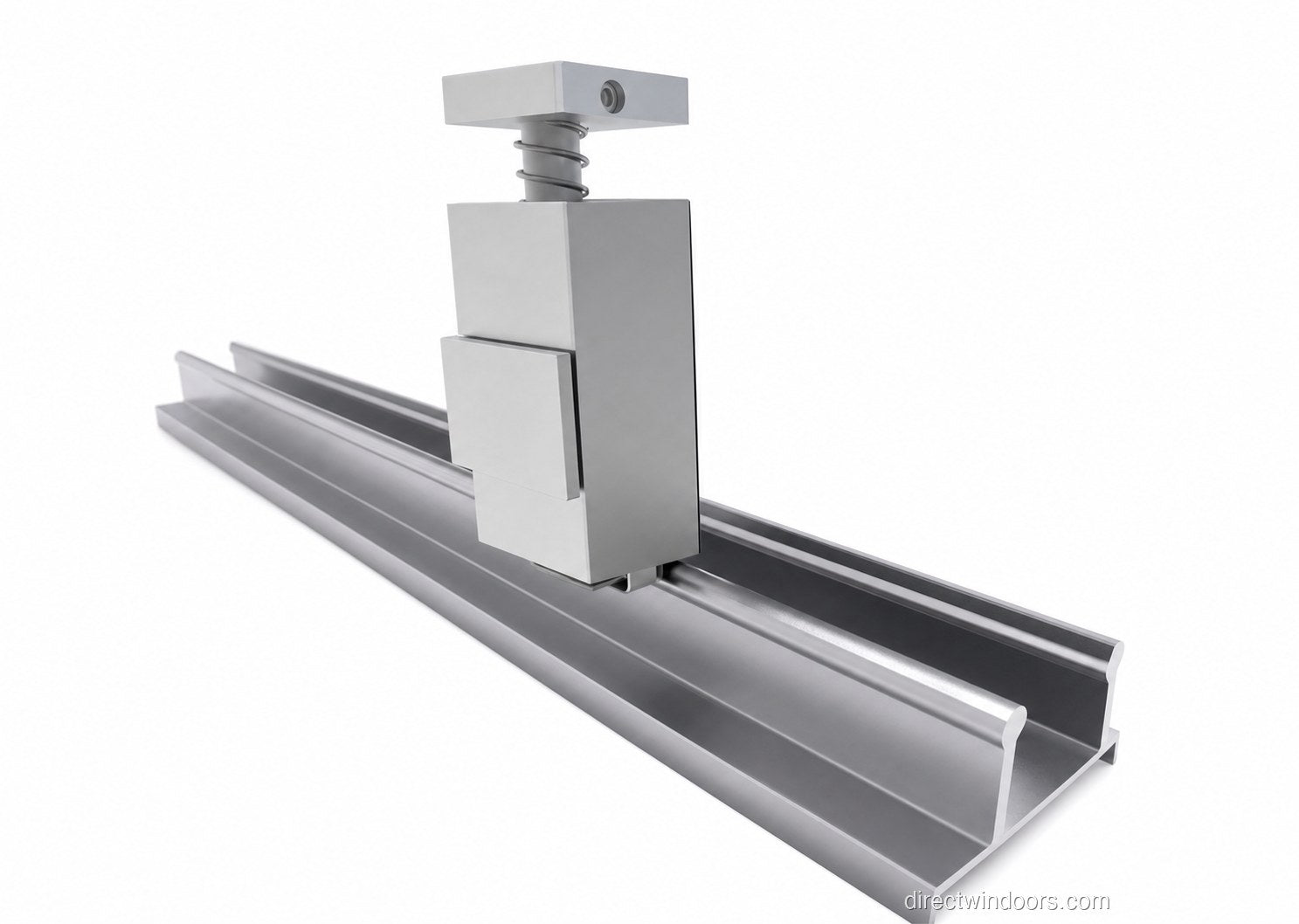

- Step-on Lock — foot-activated, hidden screws. May be available — confirm at quote.

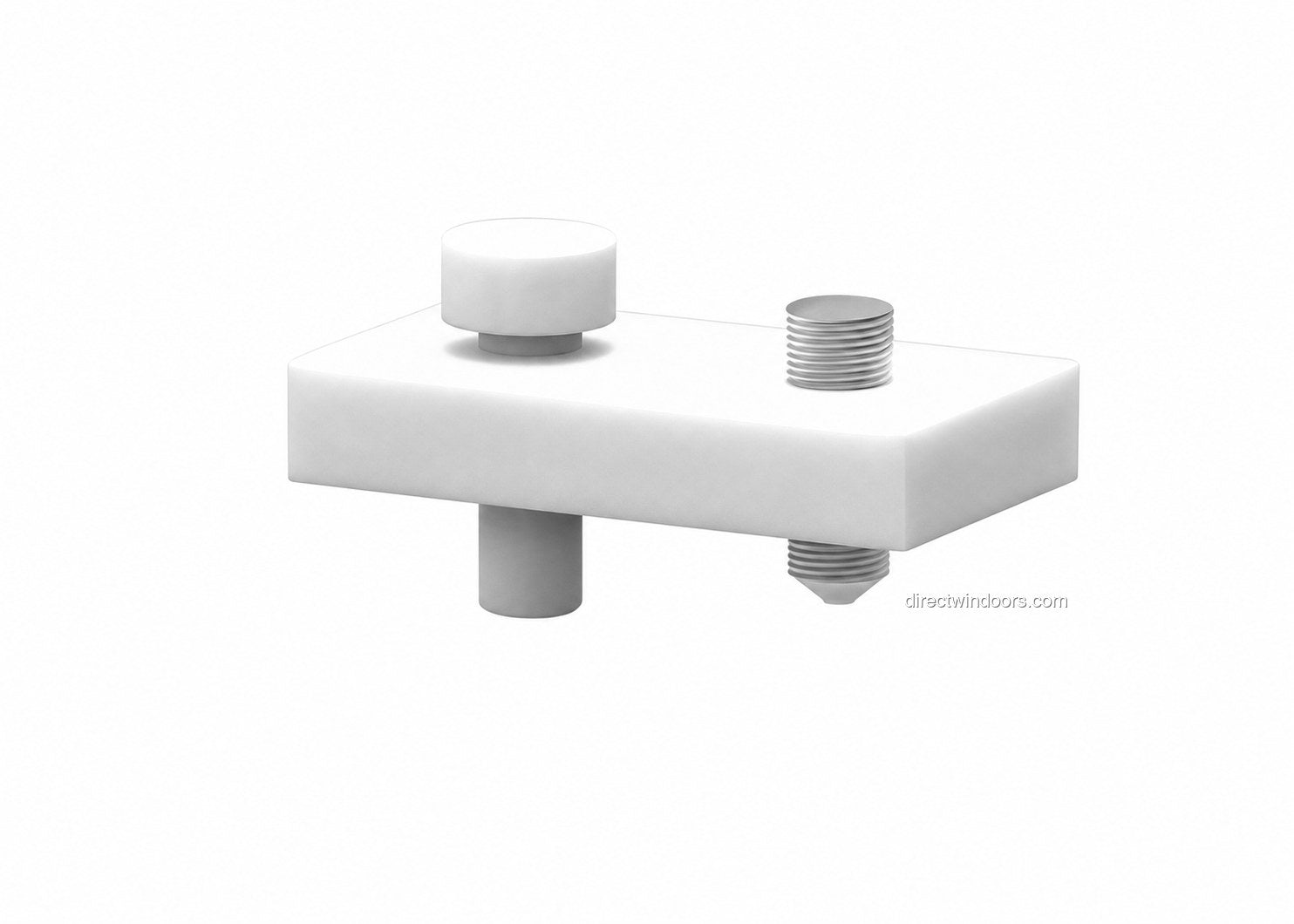

- Tamper-proof stopper — anti-lift. May be available — confirm at quote.

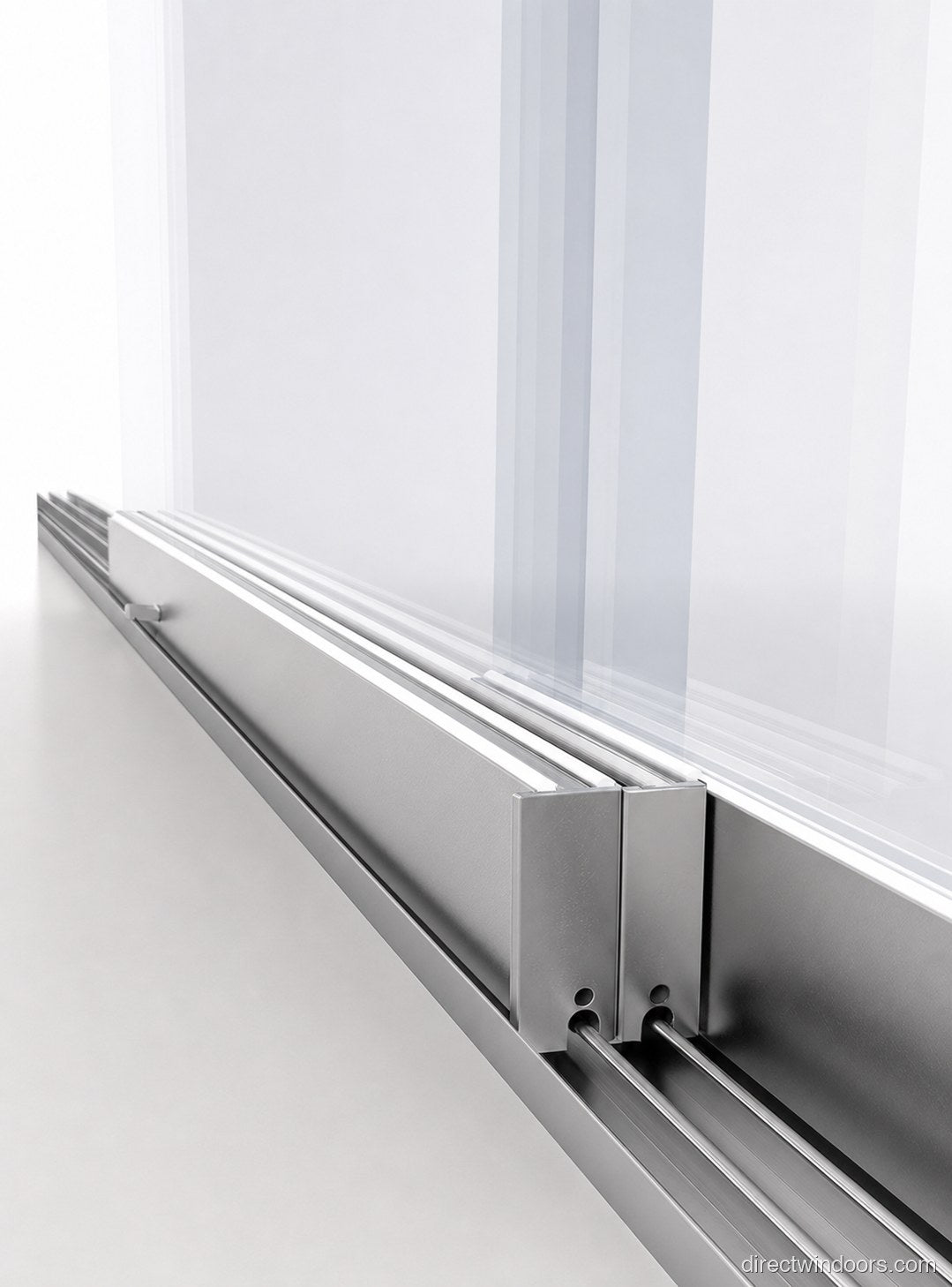

Seals & Sealing Strips

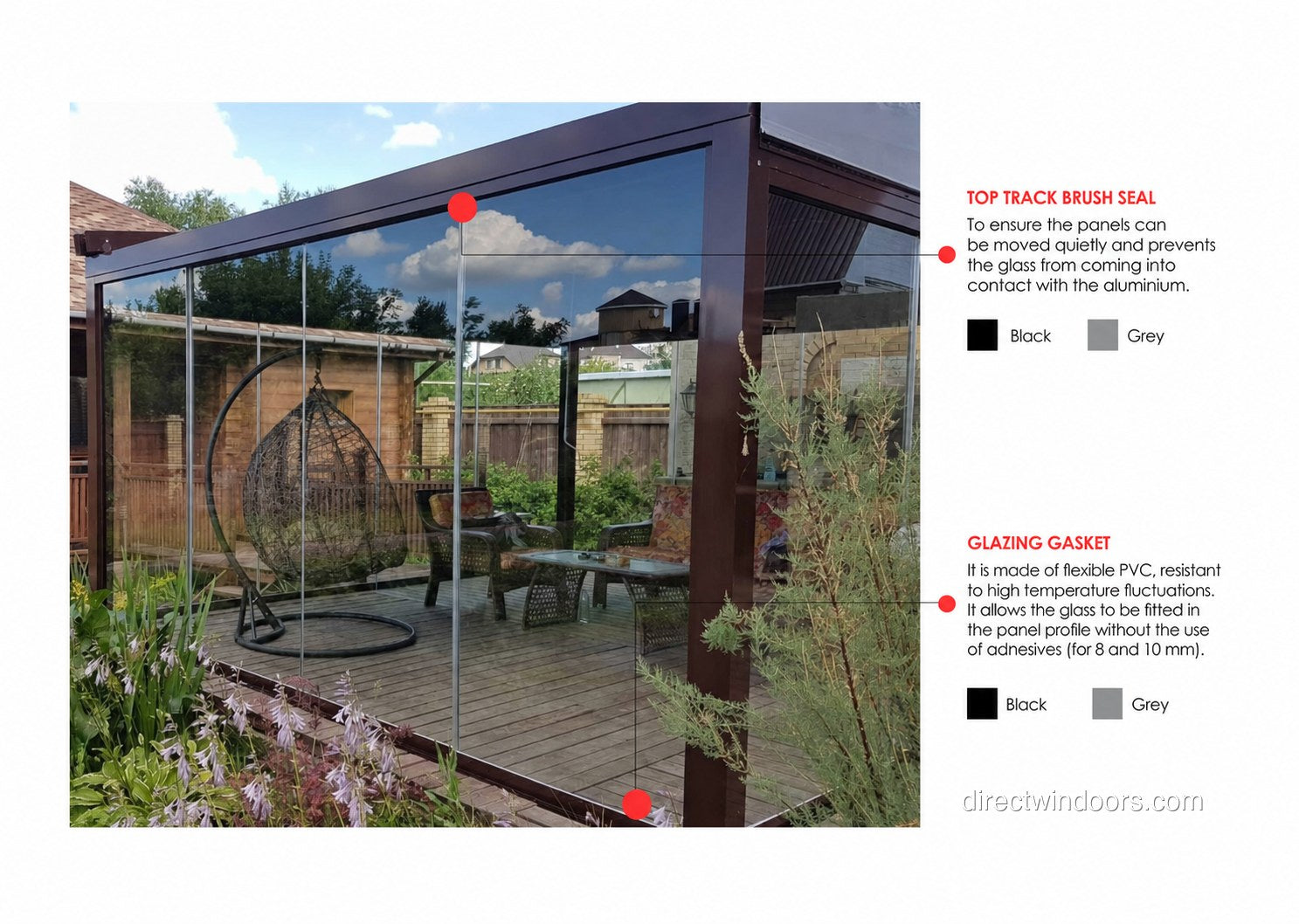

- Glazing gasket — flexible polymer, holds 3/8 in (10 mm) glass without adhesive. 1/2 in (12 mm) installed with structural adhesive. Black or grey.
- Top track brush seal — grey standard; black on request.

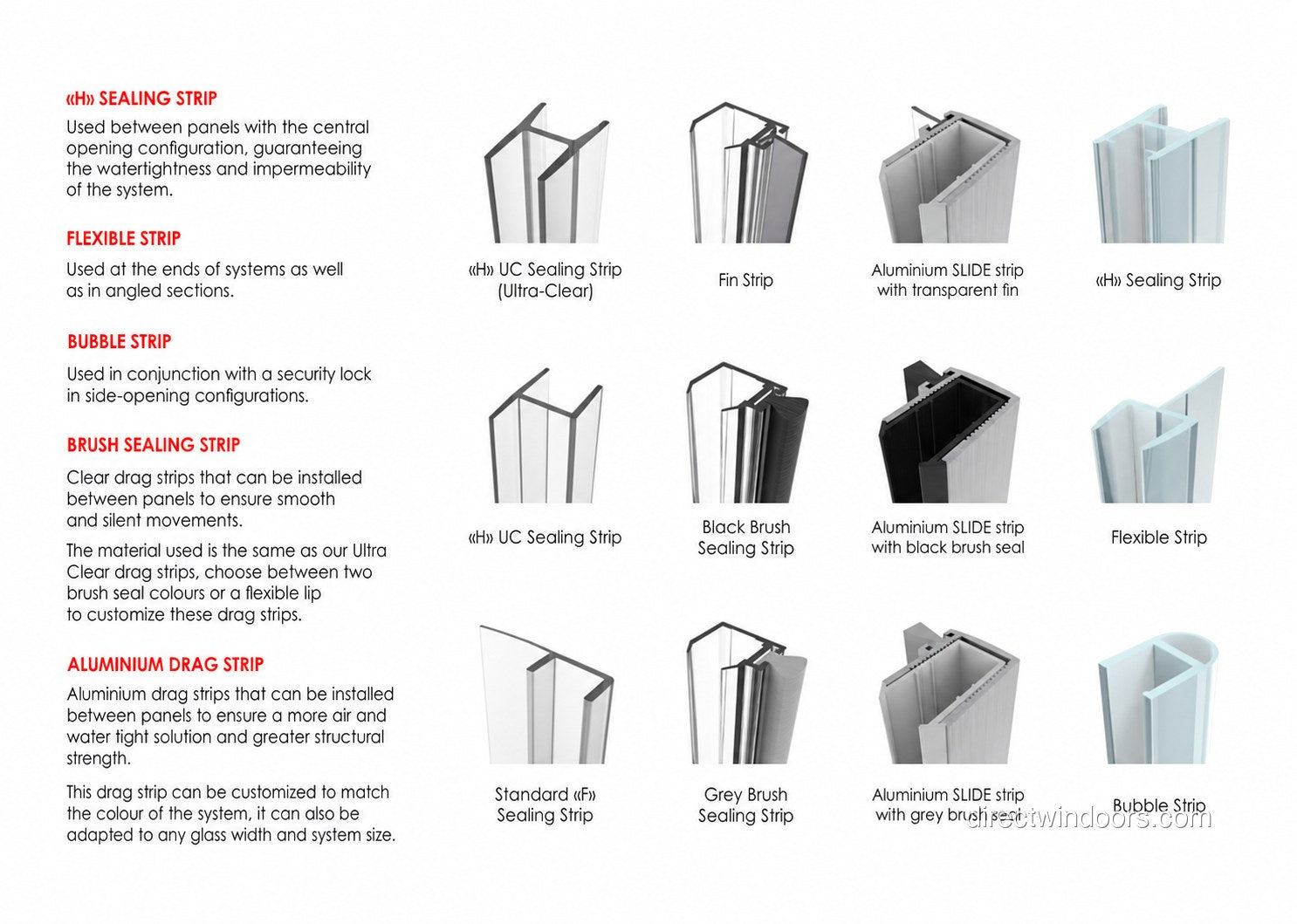

- "H" sealing strip — between panels in central-opening setups, watertight.
- "H" UC (ultra-clear) sealing strip — available on request.
- Flexible strip — at system ends and angled sections.
- Fin drag strip (clear) — smooth, silent panel-to-panel movement.
- Brush drag strip — grey standard; black on request.
- Aluminum drag strip — available on request, color-matched to the system.

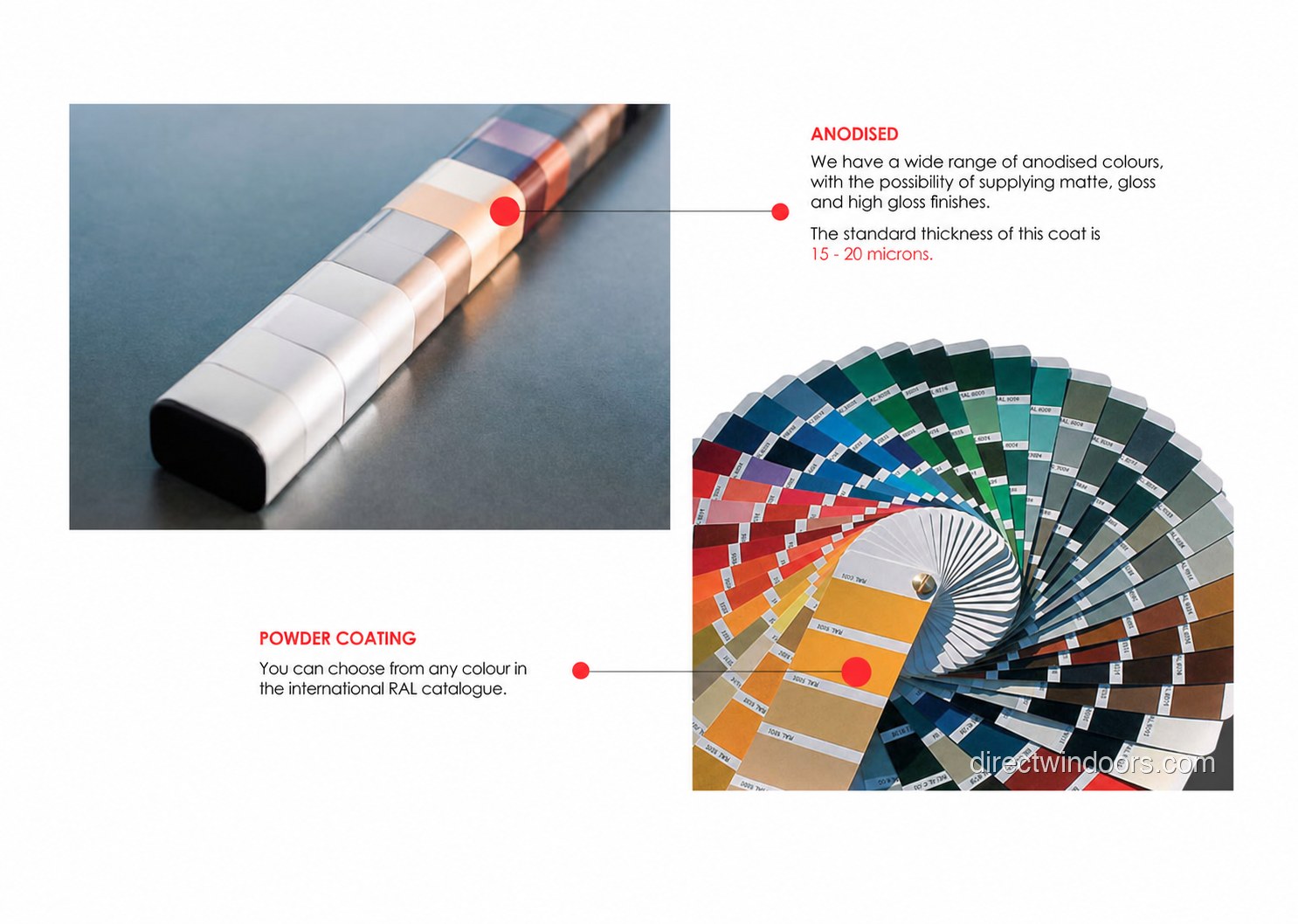

Finishes & Colors
- Powder coat — any RAL catalog color, matte or gloss.
- Anodised — matte, gloss, or high gloss.

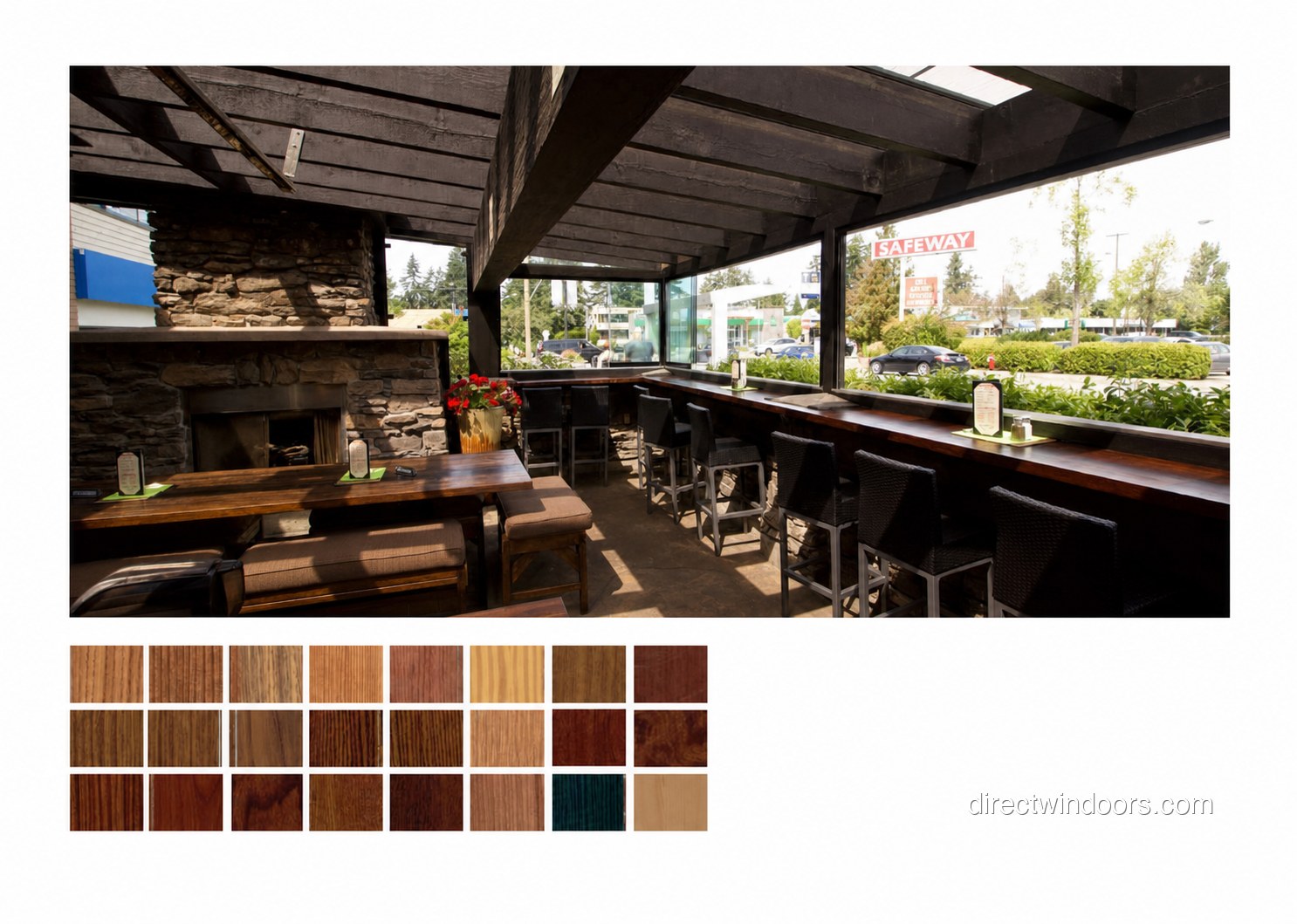

- Wood-look — decorative finishes that imitate real wood grain.
- Gasket and brush color — black or grey.
Interior Mini System
For interior partitions — offices, restaurants, retail. Ultra-low 3/8 in (9.8 mm) bottom track that embeds flush into the floor or mounts on the surface with a trim. Frameless glass partitions that divide space without breaking sight lines.

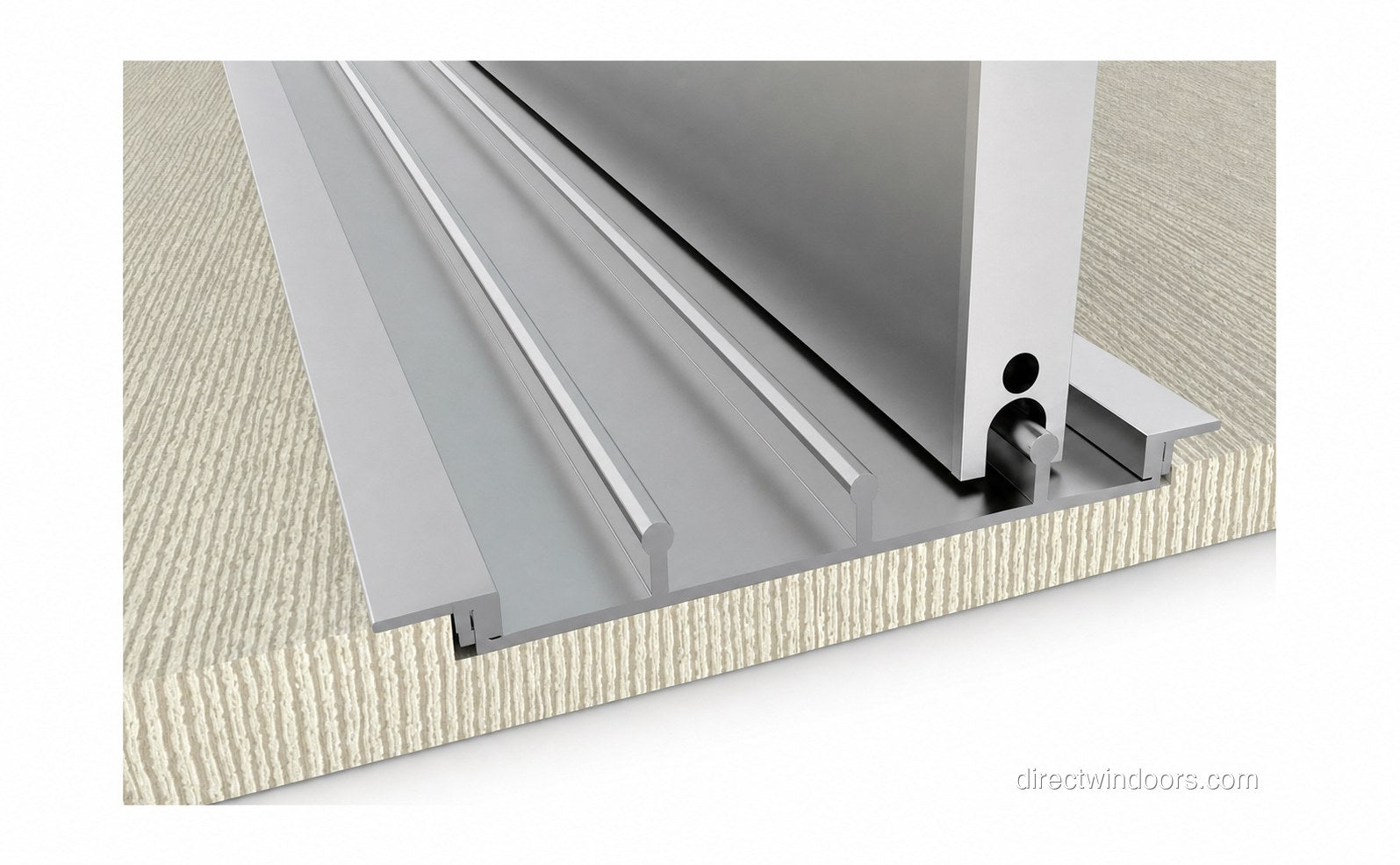

- Sunken trim — track embedded at floor level, gap concealed. Works with tile, parquet, laminate, wood, linoleum, PVC, thick carpet.

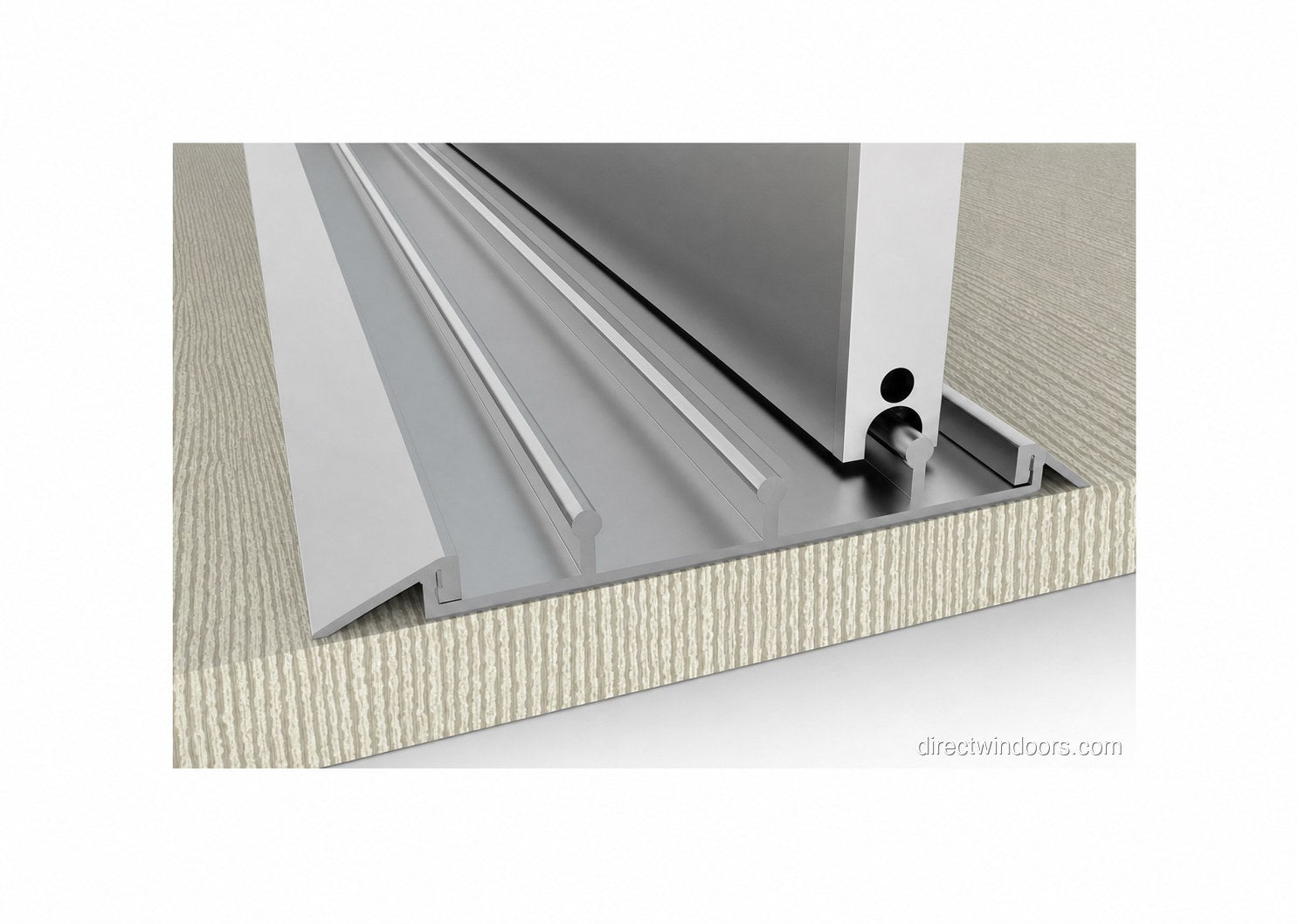

- Mounted trim — surface-mounted, no embedding required. Works with thin and thick carpet.

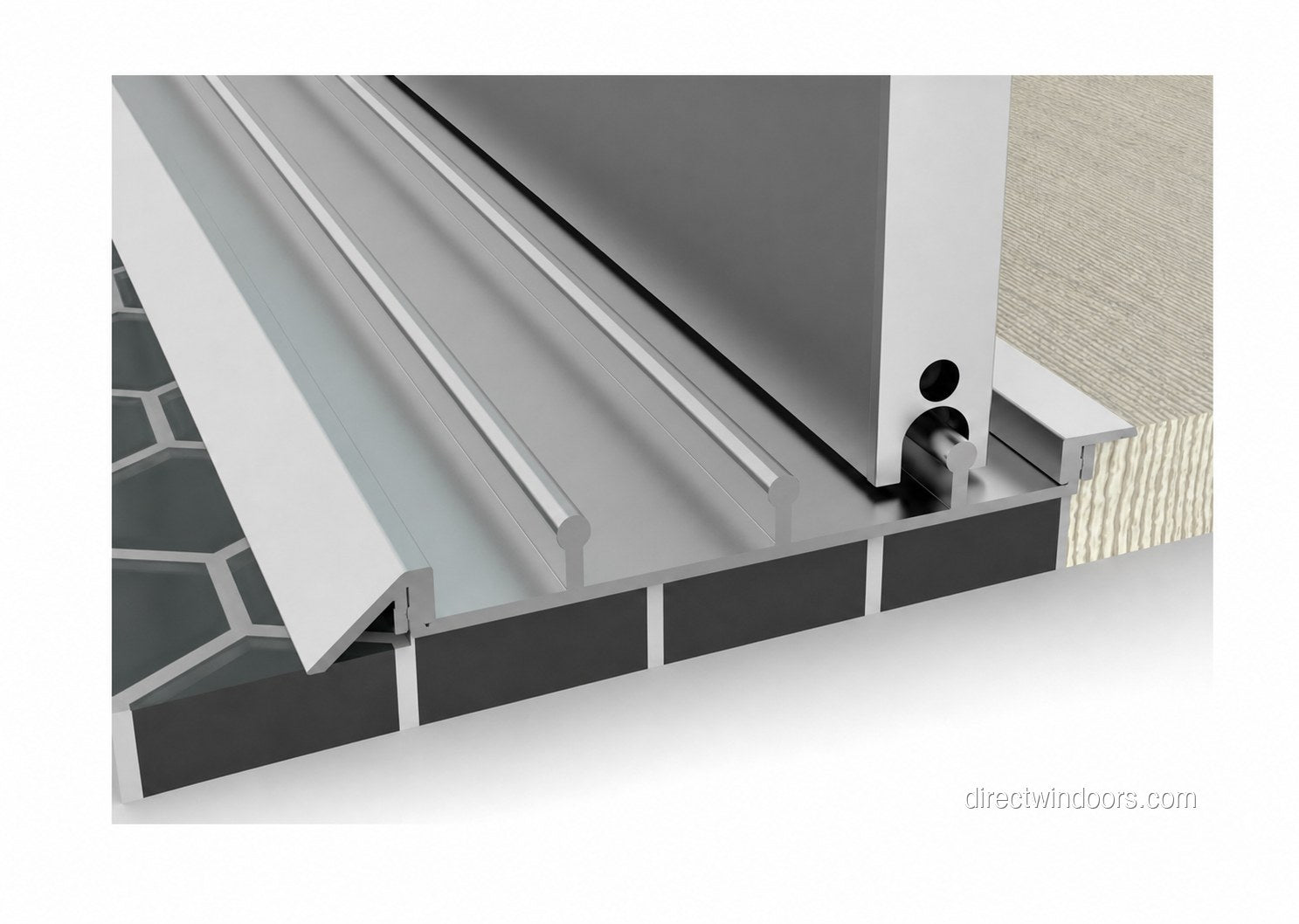

- Combined trim — for different floor levels on either side.

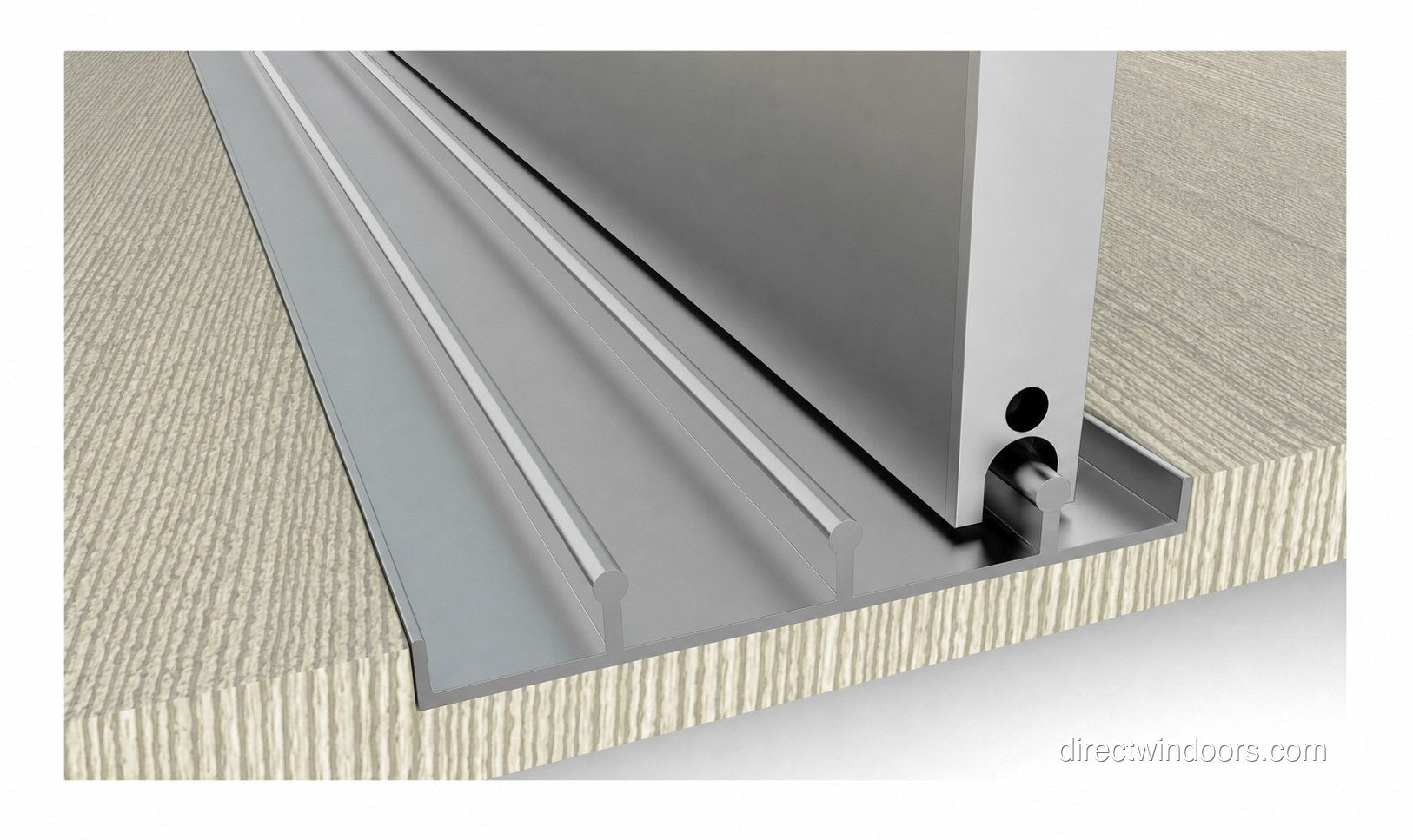

- No trim — bare install for carpeted floors.

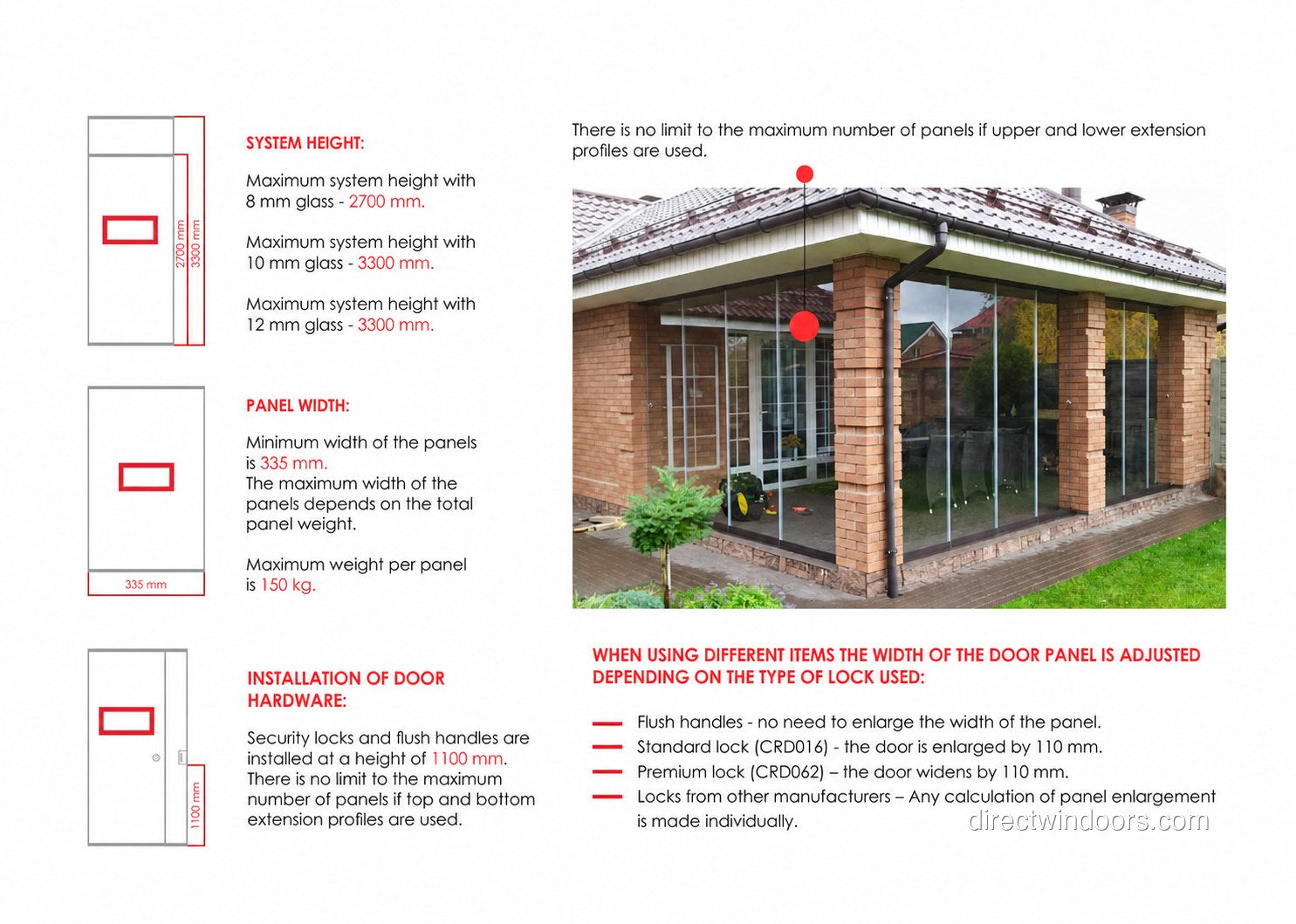

Specifications
| Specification | Detail |
|---|---|
| Frame material | Aluminum |
| Glass thickness | 3/8 in (10 mm) standard · 1/2 in (12 mm) available |
| Glass type | Tempered |
| Max panel weight | 330 lb (150 kg) |
| Max panel width | 4 ft 11 in (1,500 mm) — subject to weight limit |
| Min panel width | Custom — depends on panel height |
| Max opening height, 10 mm glass | 10 ft 6 in (3,200 mm) |
| Max opening height, 12 mm glass | 10 ft 10 in (3,300 mm) |
| Max opening width | Unlimited |
| Max number of panels | Unlimited |
| Minimum rails | 3 bottom rails (all configurations) |
| Bottom track height — exterior | 11/16 in (17 mm) |
| Bottom track height — interior (Mini) | 3/8 in (9.8 mm) |
| Panel rail height | 2-1/2 in (64 mm) |
| Top track clearance | 1 in (25 mm) — for self-adjustment |
| Handle install height | ~43 in / 3 ft 7 in (1,100 mm) from floor |
| Wind resistance | ~42 psf |
| Sound reduction | 34 dB |
| Configurations | Side opening · Central opening · 90° corner |
| Bottom track install | Floor embedded (surface-dependent) or surface mounted |
| Lead time | 45 working days from order confirmation |
Warranty & Lead Time
- 5 years on aluminum profiles, rollers, moving parts, and hardware. Covers parts plus labor.
- Glass, finishes, and seals are not covered under warranty.
- Custom-made to order — non-returnable.
- Standard production lead time: 45 working days from order confirmation.
- Final dimensions verified by on-site measurement before production.
- Installation by a licensed contractor required.
- Manufacturer reports zero warranty claims over 9 years of production.
- Warranty contact: Direct WinDoors · (818) 570-2424 · info@directwindoors.com
Frequently Asked Questions
What are frameless glass walls?
Frameless glass walls are large glass panels that slide on parallel tracks with no vertical frames between them. The only aluminum visible is a thin strip at the top and bottom of each panel. Closed, the wall looks almost invisible. Open, panels stack to one side or split to both. Common in patios, pool houses, restaurants, sunrooms, and office partitions.
How much do frameless glass walls cost?
Cost depends on opening size, glass thickness (3/8 in vs 1/2 in), number of panels, configuration, finish, and hardware. Every system is custom-sized, so prices are quoted per project. Request a quote with your opening dimensions and we'll send a written estimate.
Can the panels open at 90° corners?

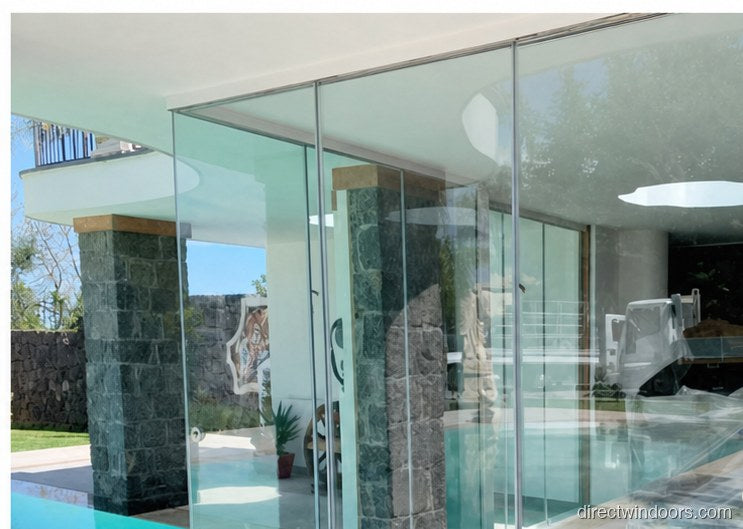

Yes. The system supports 90° corner installations with no support column at the corner. Two panel sections meet at a right angle and slide independently. Useful for indoor-outdoor patio openings and corner storefronts.
What's the maximum height?
Up to 10 ft 6 in (3,200 mm) with 3/8 in (10 mm) glass, or 10 ft 10 in (3,300 mm) with 1/2 in (12 mm) glass. Max panel weight is 330 lb (150 kg), max panel width is 4 ft 11 in (1,500 mm). Opening width is unlimited — panels run on a continuous bottom track.
How long is the lead time?
45 working days from order confirmation to shipment. Final dimensions are verified by on-site measurement before production starts.
Are these custom-sized?
Yes. Every system is custom-sized to your opening — panel dimensions, panel count, color, and hardware are all set per order. There are no off-the-shelf sizes.
What's the warranty?
5 years on aluminum profiles, rollers, moving parts, and hardware. Covers parts plus labor. Glass, finishes, and seals are not covered. Custom-made systems are non-returnable.
Do you ship nationwide?
Yes. Direct WinDoors ships nationwide from Van Nuys, California. Freight cost is quoted with your project quote based on destination.
